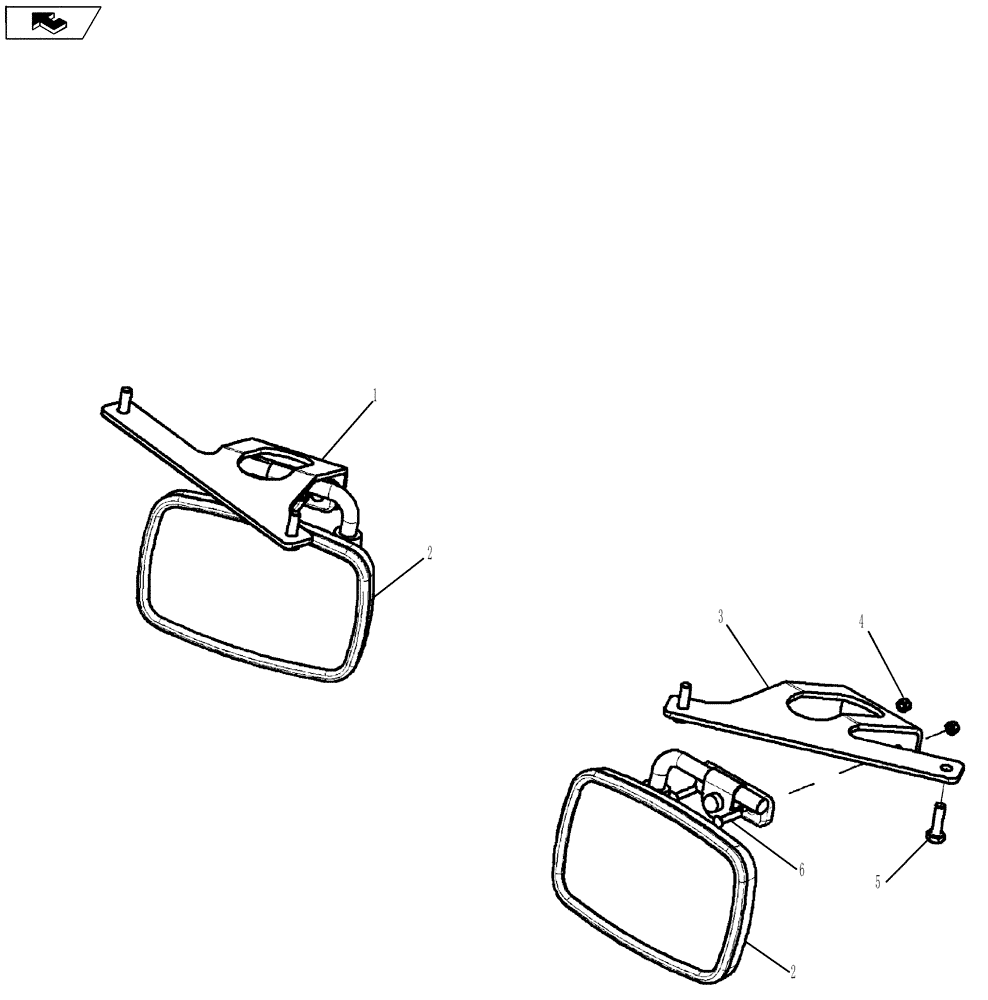

Запчасти Case IH 435 (09-36) - REAR VIEW MIRROR (09) - CHASSIS

87636518

SERVICE KIT

Kit, Interior Mirror; Incl 1 - 7

1шт.

1

87734487

BRACKET

Bracket, LH Mirror Mount

1шт.

2

3962022

MIRROR,153mm L x 103mm W

2шт.

3

87734484

BRACKET

Bracket, RH Mirror Mount

1шт.

4

385681

NUT,M4 x 0.7, Cl 8

4шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

6

43646

SCREW,Phillips Drive, Flat HD, M4 x 20mm, Cl 4.8

If Used

4шт.

6

87300034

SCREW,Phil Oval Hd, Csk, M4 x 16mm, Cl 4.8, Full Thd

4mm Phillips

4шт.

7

84395047

Installation

INSTRUCTION

1шт.
