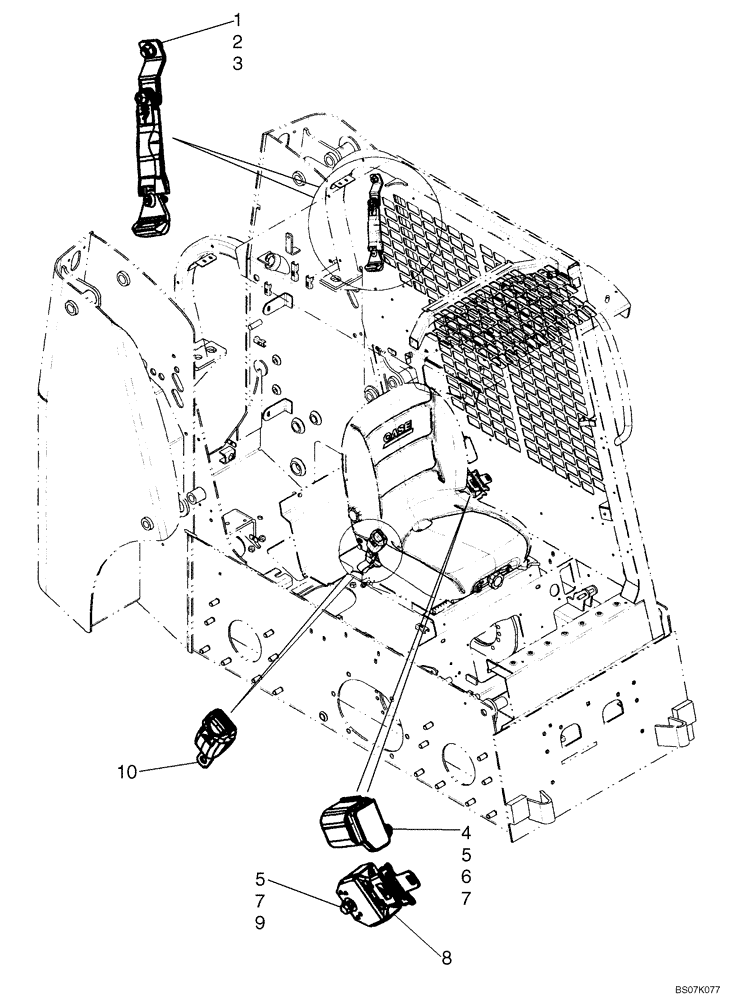

Запчасти Case IH 435 (09-34) - SHOULDER BELT (09) - CHASSIS

87717671

SERVICE KIT

Kit, 2 in. Shoulder Belt; Incl 1 - 10

1шт.

1

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

3

9706685

NUT,M12 x 1.75, Cl 8

1шт.

4

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

5

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

3-4шт.

6

87047451

SPACER,11.13mm ID x 19.05mm OD x 25mm L

1шт.

7

87030549

NUT,M10 x 1.5, Cl 10

If Used

2шт.

7

86512554

NUT,M10 x 1.5, Cl 10

If Used

2шт.

8

87702278

SAFETY BELT

2" Shoulder; Shoulder Belt Length 80", If used

1шт.

8

84174260

2 in Shoulder Belt Assy; Shoulder Belt Length 100 in, If Used

SEAT BELT

1шт.

9

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

10

84335127

Buckle Mounts To Seat Frame With Bolt And Washer Provided With Seat

INSTRUCTION

1шт.
