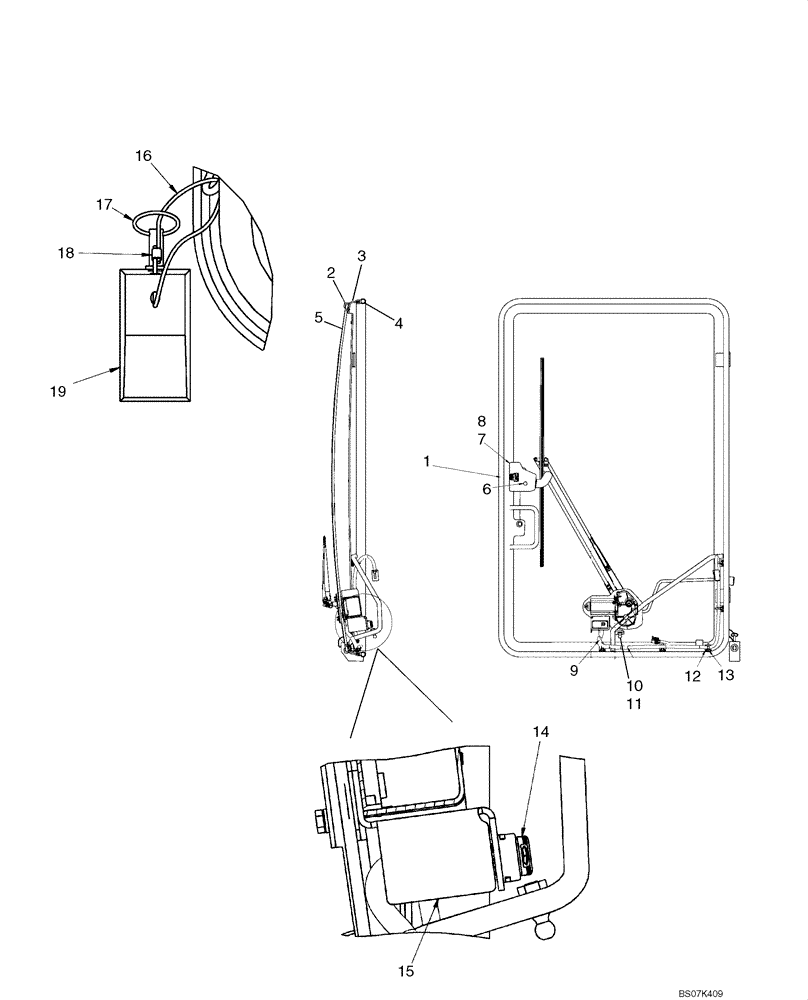

Запчасти Case IH 435 (09-23) - CAB DOOR (09) - CHASSIS

1

87627522

DOOR

Front, Glass; Incl 3, 5

1шт.

2

87715050

SEAL

Trim

1шт.

3

NSS

NOT SOLD SEPARAT

Door, Black

1шт.

4

87624550

SEAL,3449mm L

Bulb

1шт.

5

87727204

GLASS

Door; Replaces 87624558

1шт.

5a

87717687

SERVICE KIT

Door Glass; Incl Ref 2 (Trim) And Ref 5 (Glass)

1шт.

5b

87640050

SERVICE KIT

Demolition Door Conversion; Incl (1) Polycarbonate Glass Door, (1) Gasket, (8) Bolts, (8) Quick Release Knobs; If Used

1шт.

5c

84191319

KIT

Front Demolition Door Conversion; Incl (1) Polycarbonate Glass Door, (1) Gasket, (8) Quick Release Knobs

1шт.

6

86512463

SCREW,Phillips Drive, Flat HD, M6 x 25mm, Cl 4.8

M6 X 25

3шт.

7

87678399

LATCH

1шт.

8

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

9

87718107

HARNESS

Door; If Used

1шт.

9

87750585

Door Harness; If Used

WIRE HARNESS

1шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

If Used

1шт.

10

86619801

FLANGE NUT,M8 x 1.25, Cl 8

If Used

1шт.

11

87581669

BALL STUD,M8 x 29.50mm L

Ball

1шт.

12

87642914

BASE

If Used

5шт.

13

87642915

CABLE TIE,198mm L

CABLE STRAP If Used

5шт.

13a

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Not Illustrated

5шт.

14

87335499

SWITCH

Rocker, Windshield Wiper/Washer

1шт.

15

87671857

BRACKET

Wiper Switch

1шт.

15

87723782

BRACKET

Wiper Switch Bracket, Black

1шт.

16

87685949

CABLE,179.5mm L

1шт.

17

87685933

PIN,6.35mm OD x 51.6mm L

Detent

1шт.

18

87730173

Cable Crimp

CABLE CLIP

1шт.

19

87639255

STOP

ROPS Tilt; If Used

1шт.

19

87485599

STOP

ROPS Tilt; If Used

1шт.
