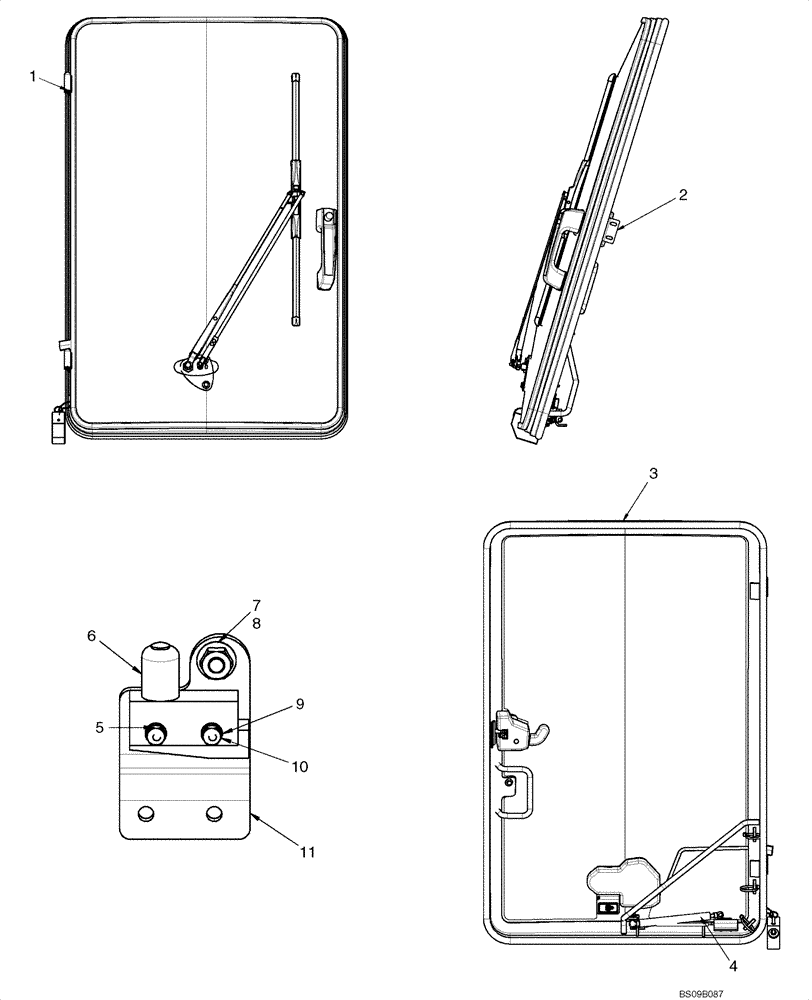

Запчасти Case IH 435 (09-21A[.]) - CAB DOOR KIT (09) - CHASSIS

87484446

DOOR

KIT HL; Incl 1-11 also include Wiper Arm. Wiper Blade, Wiper Motor

1шт.

1

87599753

SPACER,10.21mm ID x 15.88mm OD x 2.03mm L

2шт.

2

87642588

LATCH

Latch W/Striker

1шт.

3

87627708

DOOR

Assy, Parts Located on 09-23

1шт.

4

87581689

GAS STRUT

Gas Spring

1шт.

5

87680073

U-BOLT

Switch Mtg

1шт.

6

87051110

DOOR SWITCH

Seat Bar

1шт.

7

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

8

87581669

BALL STUD,M8 x 29.50mm L

Ball, Stud

1шт.

9

87529123

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

0.156 X 0.375 X 0.049

2шт.

10

87622767

NUT

Non-Dir 6-32

2шт.

11

87672000

BRACKET

Door Switch, Black

1шт.
