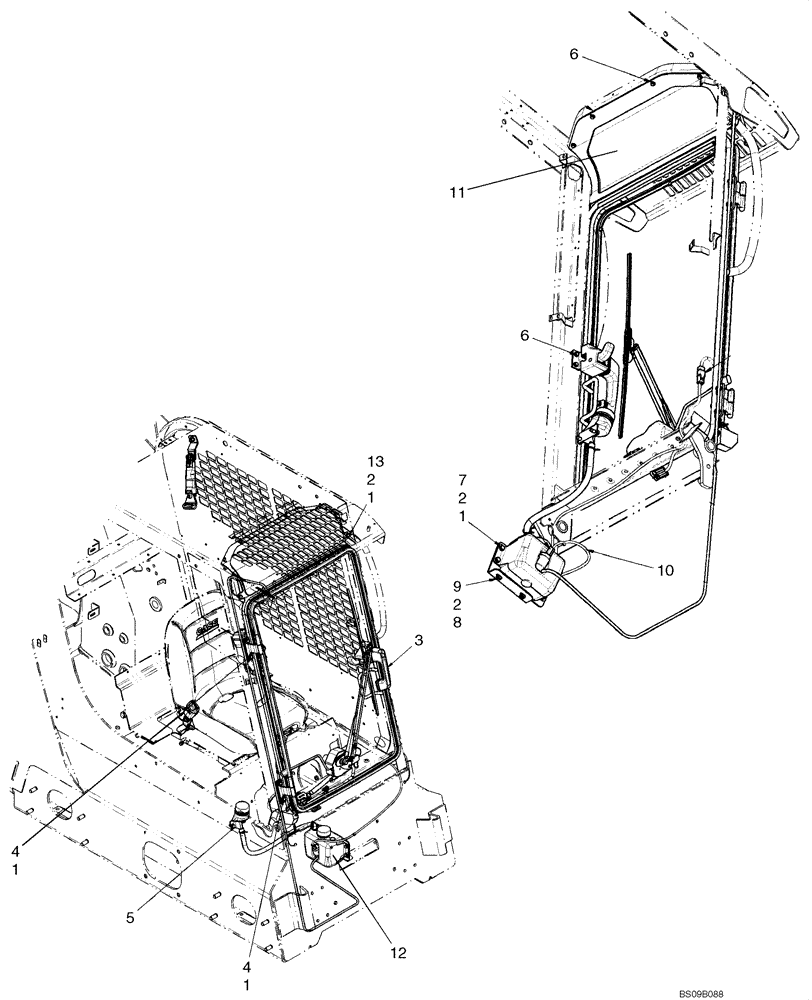

Запчасти Case IH 435 (09-21) - CAB DOOR - MOUNTING (HL) (09) - CHASSIS

87657026

SERVICE KIT

Front Door; Incl 1 - 12

1шт.

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8-10шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10-12шт.

3

87627052

DOOR

If Used

1шт.

3

87484446

DOOR

Door Kit HL; See Fig 09-21A

1шт.

4

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

If Used

4шт.

4

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

5

637964

SELF-TAP SCREW,Hex, 3/8" - 16 x 3/4"

2шт.

6

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

6шт.

7

43362

NUT,M8 x 1.25, Cl 10

4шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

10

87658639

HARNESS

Door Jumper; If Used

1шт.

10

87747923

HARNESS

Door Jumper HL

1шт.

11

87484445

SERVICE KIT

Visor Kit; See Fig 09-21B

1шт.

12

87484444

SERVICE KIT

Washer Bottle Kit; See Fig 09-21C

1шт.

13

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.
