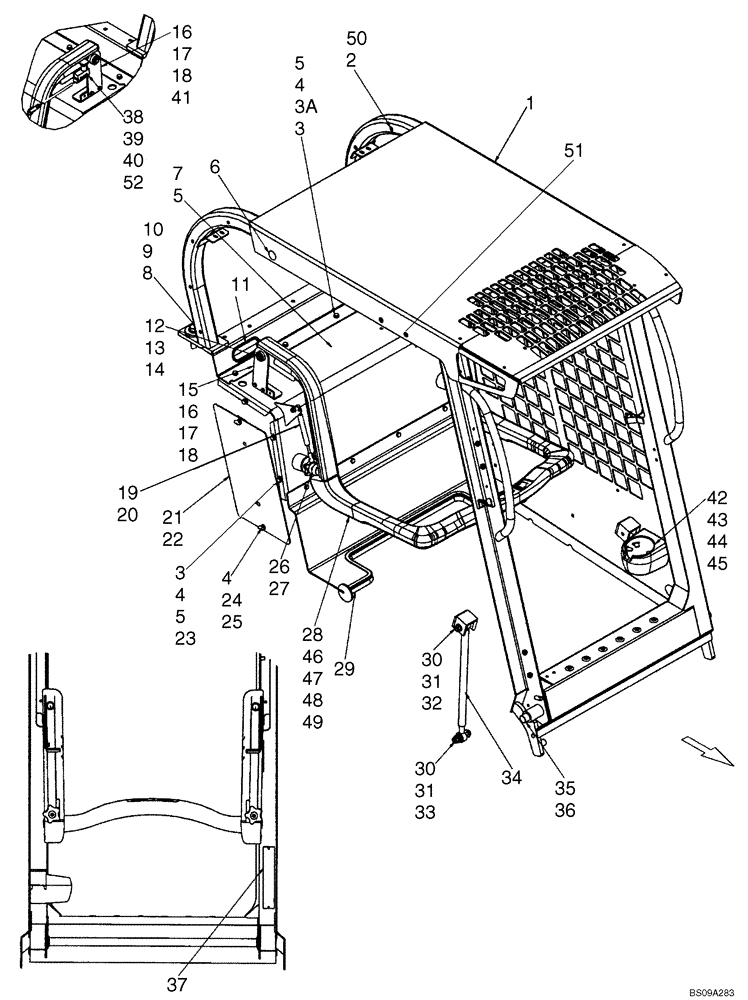

Запчасти Case IH 435 (09-20) - CAB - SEAT FRAME AND SEAT BAR (09) - CHASSIS

1

87636513

SERVICE KIT

ROPS

1шт.

2

419434A1

INSERT

Threaded Insert - M6

10-18шт.

3

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4-6шт.

3a

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

12-14шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

16шт.

6

86625129

PLUG,Dome, 1" Hole, Nylon

If Used

2шт.

6

87499075

DECAL

Blank Decal, Gray

2шт.

7

87671888

PANEL

Rear Seat Panel; If Used

1шт.

7

87473787

Rear Seat Panel

1шт.

8

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

If Used

2шт.

8

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

9

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

10

391703A2

WASHER,16.67mm ID x 55mm OD x 6.35mm Thk

2шт.

11

87713678

GROMMET

Grommet

1шт.

12

D143415

SNAP RING,0.50” ID, Klipring

2шт.

13

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

14

87620895

BUSHING,12.98mm ID x 19.11mm OD x 23.1mm L

Lap Bar Pivot

2шт.

15

87645117

DRAWBAR CLAMP

Seat Bar Pivot, RH; If Used

1шт.

15

87473777

BRACKET, PIVOT

PIVOT BRACKET Seat Bar Pivot, RH

1шт.

16

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

17

86511444

FLANGE NUT,Hex, M6 x 1

4шт.

18

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

19

87639899

CYLINDER

1шт.

20

189609A1

BALL STUD,M8 x 1.25

2шт.

21

87460732

PANEL

Solid Panel; If Used

1-2шт.

21

87694082

PANEL

Perforated Panel; If Used

2шт.

22

86625127

PLUG,Dome, .375" hole, Nylon

4шт.

23

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

If Used

6шт.

24

408117A2

THUMB SCREW,M8 x 1.25 x 15mm

If Used

4шт.

24

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2-4шт.

25

442856A1

SEALING WASHER,7.11mm ID x 12.7mm OD x 0.79mm Thk

2-4шт.

26

87639914

STOP

Seat Bar Pivot Stop

2шт.

27

87639912

KNOB

Knob

2шт.

28

REF

INSTRUCTION

Seat Bar; See Fig 09-27; If Used

1шт.

29

87713388

MOLDING

ROPS Floor Seal

1шт.

30

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

31

86512554

NUT,M10 x 1.5, Cl 10

2шт.

32

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

33

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

34

282002A2

GAS STRUT

1шт.

35

144345A3

PIVOT PIN,25.4mm OD x 825mm L

1шт.

36

827695C1

CIRCLIP

2шт.

37

NSS

NOT SOLD SEPARAT

Plate, ROPS Certification

1шт.

38

87051110

DOOR SWITCH

Seat Bar Switch

1шт.

39

H435814

U-BOLT

1шт.

39

87319756

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"

Screw 6-32 X 1-3/8 Pan HD CR Znd

2шт.

40

280859

NUT,Keps, #6-32

2шт.

41

87645118

DRAWBAR CLAMP

Seat Bar Pivot, LH; If Used

1шт.

41

87473775

BRACKET, PIVOT

PIVOT BRACKET Seat Bar Pivot, LH

1шт.

42

87672170

MOLDING

Cup Holder Assembly; Incl 43

1шт.

43

304061A1

BUMPER,Rubber

Rubber Bumper

4шт.

44

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

2шт.

45

86637935

BOLT,Hex, 1/4" - 20 x 1", Gr 8

If Used

2шт.

45

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

46

87619939

ARM

Upper Lap Bar LH

1шт.

47

87619938

ARM

Upper Lap Bar RH

1шт.

48

87619935

BAR

Lower Section Lap Bar

1шт.

49

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

4шт.

50

87436247

THREADED INSERT

M6 Blind Threaded Fastener

8шт.

51

414635A1

COVER,25.4mm OD x 0.51mm Thk

Cover, 25.4 Dia Lexan Gray

4-16шт.

52

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

2шт.
