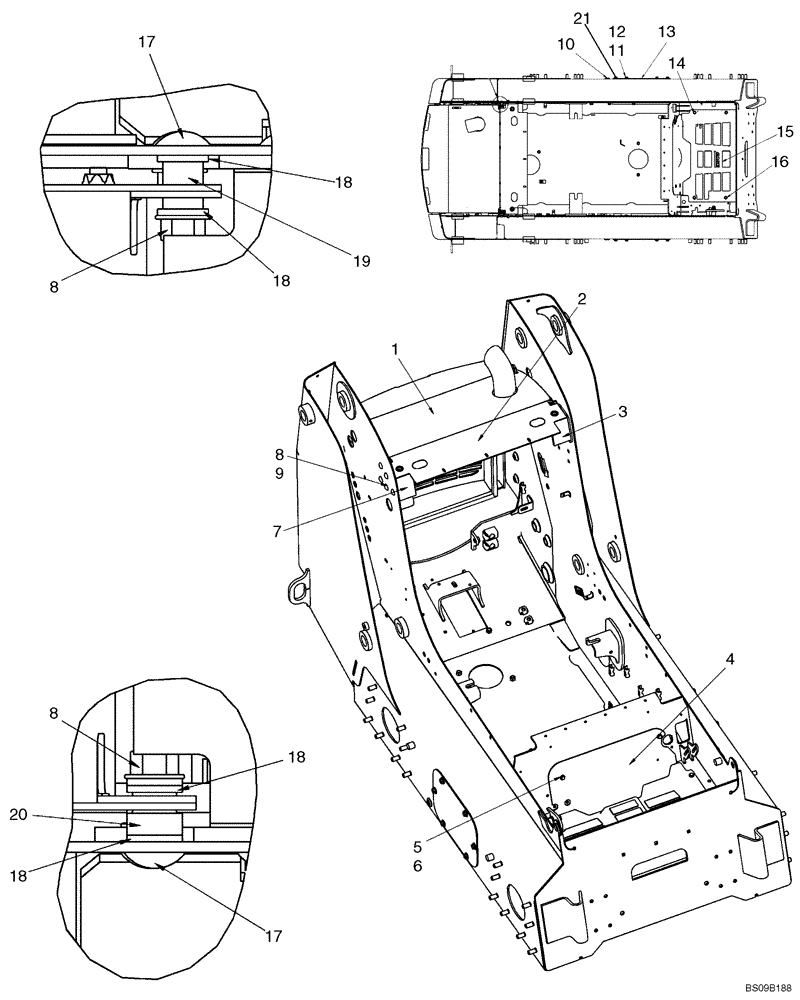

Запчасти Case IH 435 (09-19) - CHASSIS (09) - CHASSIS

87618937

SERVICE KIT

Kit, Chassis; Incl Main Frame 87672464, Figure 09-18 Ref 6, 21, 23, 24, 25, 26, 27, Fuel Sender, Gasket and Mounting Screws 04-04A Ref 6, 7, 8, Decal 251745A1

1шт.

87672464

FRAME

1шт.

1

REF

INSTRUCTION

Hood; See Fig 09-51

1шт.

2

87661309

PLATE

Plate; If Used

1шт.

2

87473797

PANEL

1шт.

3

87665572

BRACKET

Rear ROPS Mount, LH

1шт.

4

87715353

COVER

Heel Plate Cover

1шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

87665570

BRACKET

Rear ROPS Mount, RH

1шт.

8

43436

FLANGE NUT,M12

10шт.

9

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

10

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

Pipe Plug 1/2 NPTF

2шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

12

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

13

87411208

COVER PLATE

2шт.

14

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

15

87712693

PLATE

Floor Plate

1шт.

15

87705430

FLOOR MAT

Fiber Composite

1шт.

16

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3-4шт.

17

334682

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

2шт.

18

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

17шт.

19

87671585

SPACER

Spacer

1шт.

20

87671584

SPACER

Pivot Bushing

1шт.

21

87758381

SCREW,1"

Button Socket

4шт.
