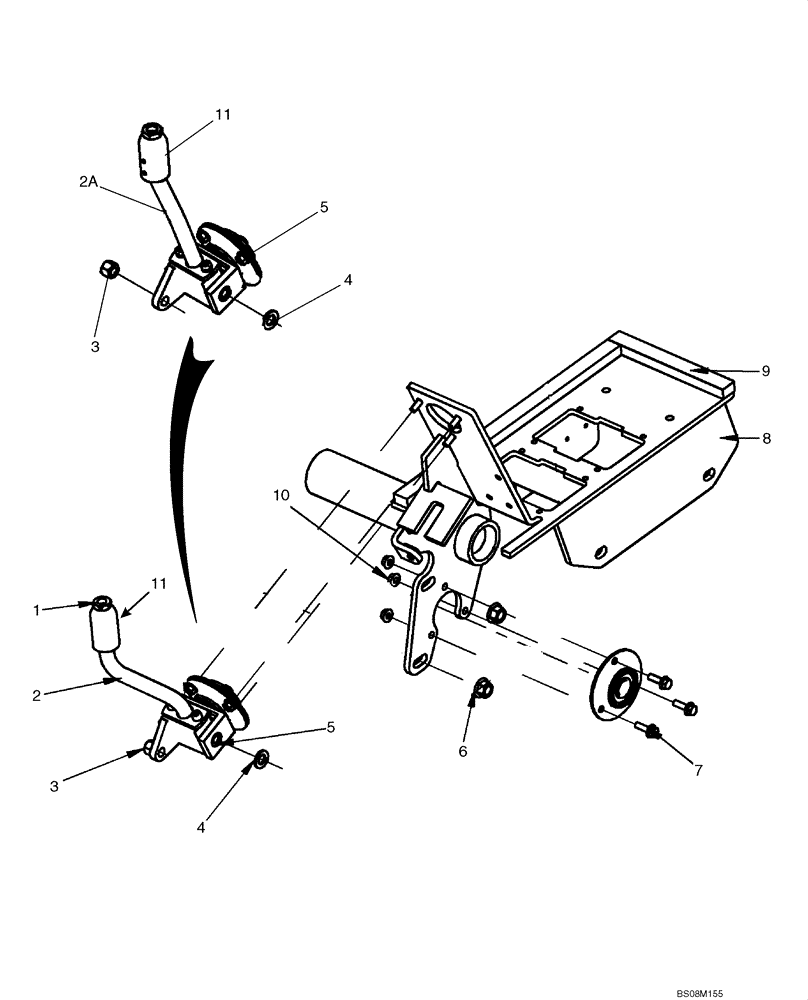

Запчасти Case IH 435 (09-14) - LOADER AND GROUND DRIVE CONTROL - LH (09) - CHASSIS

1

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

2

87662370

CONTROL LEVER

Control Lever, LH: If Used

1шт.

2a

84133863

CONTROL LEVER

Control Lever, LH: If Used

1шт.

3

80855

NUT,Hex, 3/8" - 24

1шт.

4

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

5

237774A1

SHAFT

1шт.

6

43435

FLANGE NUT,Hex, M10 x 1.5

4шт.

7

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

6шт.

8

87669932

FRAME

Frame, Console LH

1шт.

9

291308

SEALING STRIP,0.75" W x 0.5" Thick

3.4 Ft Required

1шт.

10

86511444

FLANGE NUT,Hex, M6 x 1

9шт.

11

87662429

ADAPTER

Handle

1шт.
