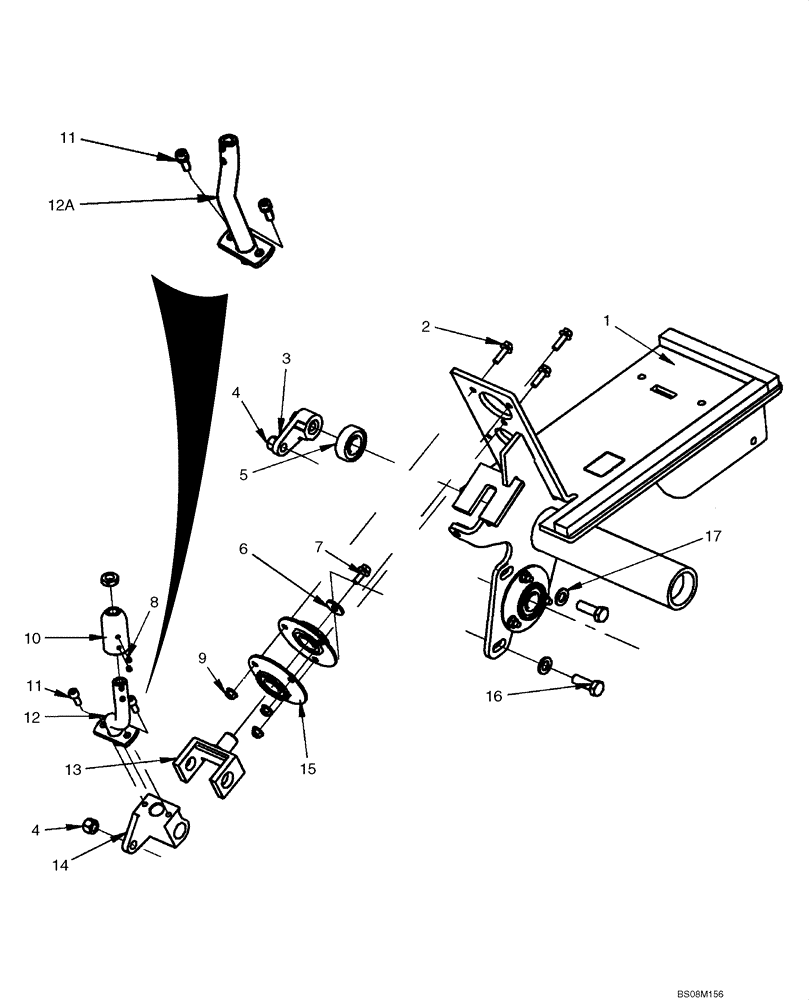

Запчасти Case IH 435 (09-13) - LOADER AND GROUND DRIVE CONTROL - RH (09) - CHASSIS

1

87669933

FRAME

Frame, Console RH

1шт.

2

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

6шт.

3

237773A1

LEVER ASSY.

3шт.

4

80855

NUT,Hex, 3/8" - 24

6шт.

5

102776A1

BEARING, BALL,17 mm ID x 40 mm OD x 12 mm

4шт.

6

86625237

WASHER,0.28" ID x 0.88" OD x 0.1" Thk

2шт.

7

87030555

BOLT,Hex, M6 x 16mm, Cl 8.8

2шт.

8

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

Set Screw, #10 UNF X 1/4

4шт.

9

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

10

87662429

ADAPTER

Handle Mounting Adapter

1шт.

11

FOR2479277

SCREW,M6 x 16mm L

Socket Head, M6 X 16

4шт.

12

87662422

CONTROL LEVER

Control Lever, RH; If Used

1шт.

12a

84133864

CONTROL LEVER

Control Lever, RH; If Used

1шт.

13

87441548

SUPPORT

2шт.

14

238357A3

PIVOT

1шт.

15

112380A1

BEARING ASSY

3шт.

16

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

17

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
