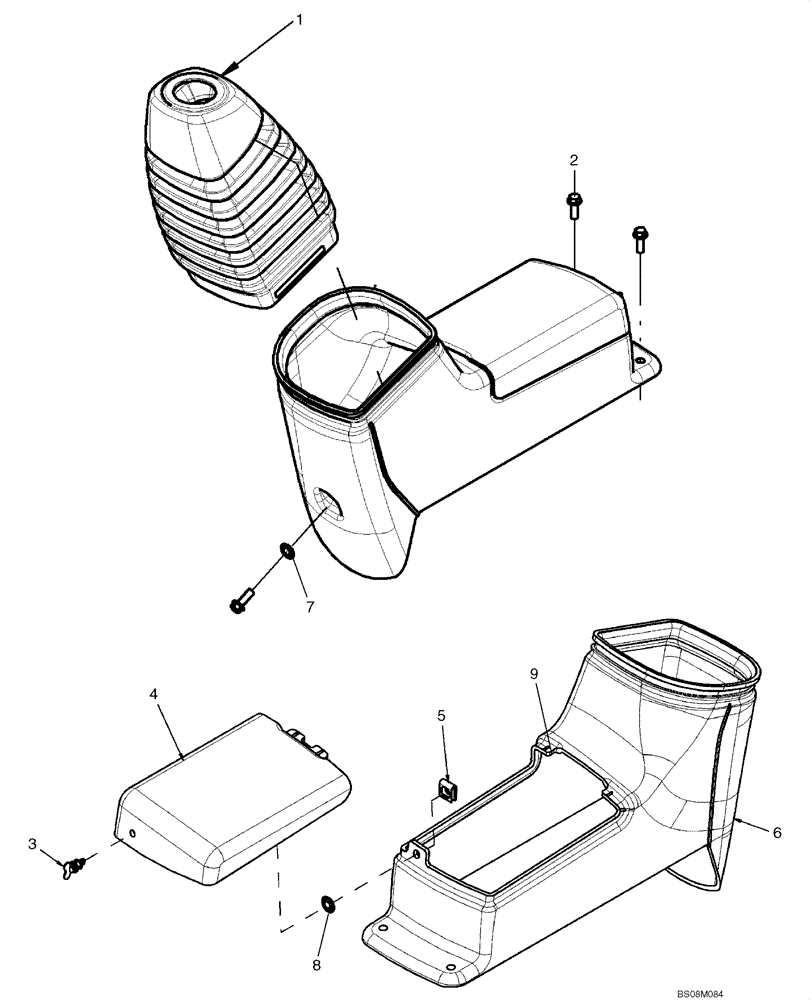

Запчасти Case IH 435 (09-12) - CONTROL CONSOLE - LH (09) - CHASSIS

1

87679718

BOOT

LH

1шт.

2

87556251

SCREW,Hex, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HEX WASHER HD CST ZND; If Used

3шт.

2

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

If Used

3шт.

3

87568437

WING NUT

If Used

1шт.

3

273890

THUMB SCREW,#10 - 32 x 3/4"

If Used

1шт.

4

87647723

COVER

1шт.

5

236535A1

CLIP,ELECTRICAL

If Used

1шт.

5

87301324

NUT,Spring, M5 x 0.8

If Used

1шт.

6

87647722

CONSOLE

LH

1шт.

7

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

8

86625144

SNAP RING,#18, Ext

If Used

1шт.

9

291809

SEALING STRIP

0.3 FT Required, Cut As Needed; If Used

1шт.
