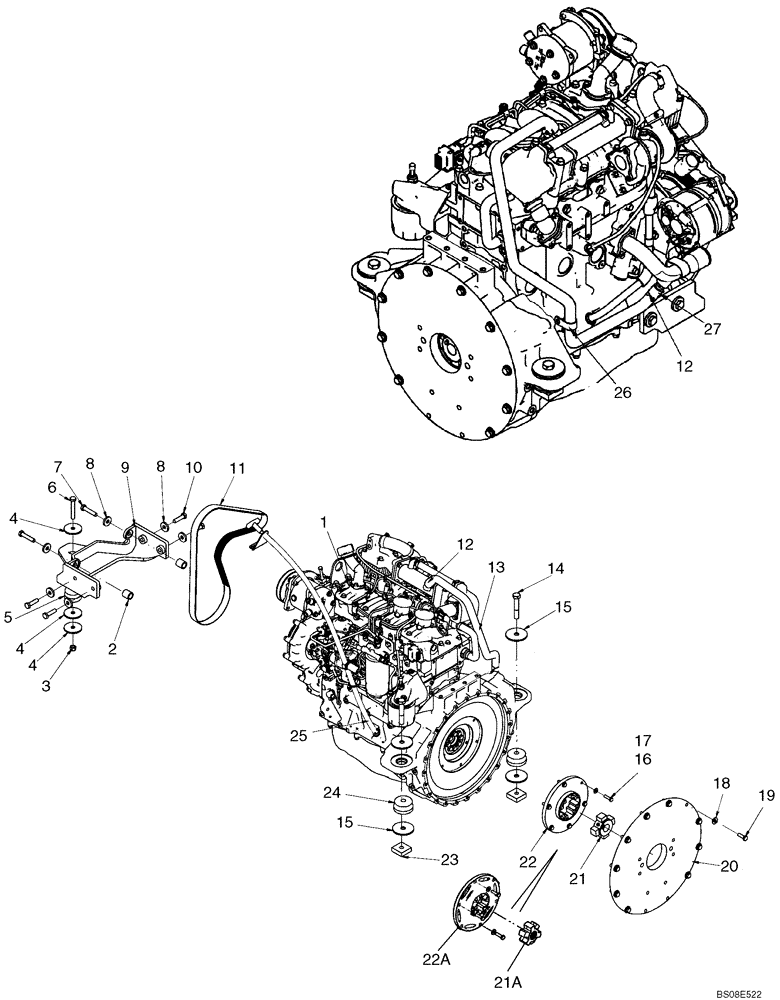

Запчасти Case IH 435 (02-06) - ENGINE - MOUNTING (02) - ENGINE

1

87380450

ENGINE

Engine, F5C 59kw

1шт.

1

87380450ER

435 Tier 3 , ASN N7M425032, F5C, 4 Cyl., 2v, New Replacement Eng., N.A. Only

REMAN-REPLACEMENT EN

1шт.

87380450EPAC

Return Number, For N.A. Only

CORE-EPA ENGINE

1шт.

1

87380450R

REMAN-REPLACEMENT EN

ENGINE (EXCHANGE) F5C Replacement Engine - For N.A. Only

1шт.

87380450C

CORE-ENGINE

F5C Replacement Engine - For N.A. Only

1шт.

1

47456817R

435 (TIER 3) ASN N7M425032 (1/08-3/11), Reman For New P/N 87380450

REMAN-BASIC ENGINE

1шт.

47456817C

Return Number

CORE-BASIC ENGINE

1шт.

1

8099018R

REMAN-SHORT ENGINE

1шт.

8099018C

CORE-SHORT ENGINE

Return Number

1шт.

2

87578141

SPACER

2шт.

3

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

4

87639792

WASHER,0.53" ID x 2.5" OD x 0.19" Thk

3шт.

5

D137185

MOUNTING PARTS

Isolation Mount; No Longer Used, Order 86541277

1шт.

5

86541277

INSULATOR

Isolation Mount

1шт.

6

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

7

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

8

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

9

87573395

BRACKET

Engine Mount, Fan Side; No Longer Used, Order 87687525

1шт.

9

87687525

BRACKET

Engine Mount, Fan Side

1шт.

10

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

11

87608059

V-BELT,28.60 mm W x 1510.60 mm L

1шт.

12

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

1-2шт.

13

87655496

HEATER HOSE,16.00 mm ID, 19.00 mm OD, 510.30 mm, SAE 30R2

1шт.

14

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

2шт.

15

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

Washer, 17.3mm ID X 70mm OD X 4.5mm Thk

4шт.

16

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

18

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

10шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

20

87547003

PLATE

Pump Mounting Plate

1шт.

21

87024588

HUB

Pump Drive Hub, 4 Point Drive

1шт.

21a

87711337

COUPLING,19T, 1-1/8" ID

Pump Drive Hub, 6 Point Drive; Replaces 87024588

1шт.

22

87024539

ELEMENT

Pump Drive Element, 4 Point Drive

1шт.

22a

87692685

FLEXIBLE COUPLING,215.9mm OD

Pump Drive Element, 6 Point Drive; Replaces 87024539

1шт.

23

87535743

NUT

2шт.

24

86550698

INSULATOR

Isolation Mount

2шт.

25

REF

INSTRUCTION

Dipstick; See Fig 02-07

1шт.

26

86637995

CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type

If Used

1шт.

26

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

27

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

28

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

29

87668734

HARNESS

1шт.

30

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

31

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

5шт.

32

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

33

87477368

ECU

F5C

1шт.

34

87674802

CAP,7mm ID x 9mm OD x 12mm L

Oil Fill Cap

1шт.

35

87680042

NECK FILLER

1шт.
