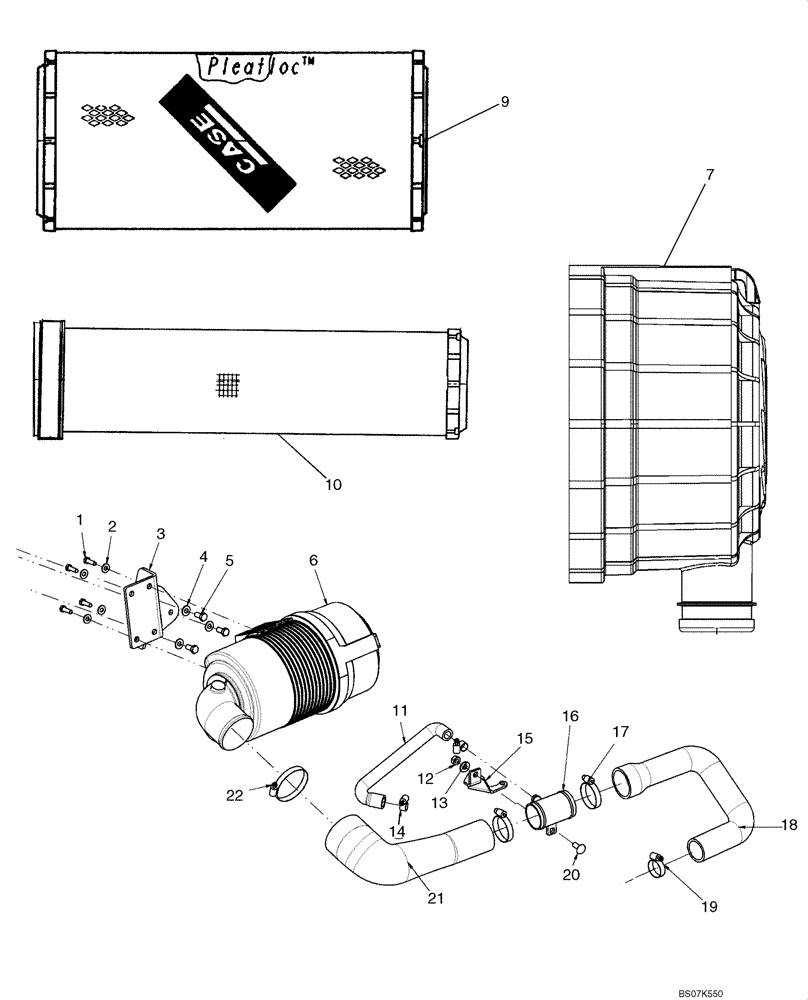

Запчасти Case IH 435 (02-05A) - AIR CLEANER - ENGINE; IF USED, SEE REF 11 (02) - ENGINE

1

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

2

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

3

87657945

BRACKET

Air Cleaner Mounting Bracket; No Longer Used, Order 87722120

1шт.

3

87722120

BRACKET

Air Cleaner Mounting Bracket

1шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

6

87644686

AIR FILTER

Incl 7 - 10

1шт.

7

395792A1

COVER ASSY

1шт.

8

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Vacuator

1шт.

9

222421A1

AIR FILTER

Primary Filter

1шт.

10

222422A1

AIR FILTER

ELEMENT, FILTER Secondary Filter

1шт.

11

87655495

HOSE,17.00 mm ID, 20.00 mm ID, SAE 30R2

1шт.

12

100016

NUT,M10 x 1.5, Cl 8

1шт.

13

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

14

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

15

87655497

BRACKET

Air Cleaner Coupler; If Used

1шт.

15

87471945

BRACKET

Air Cleaner Coupler; If Used

1шт.

16

87610560

HOSE

1шт.

17

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

2шт.

18

87672333

HOSE,44.00 mm ID, 60.30 mm ID, SAE J200

Coupler To Turbo

1шт.

19

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

20

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

21

87657848

INTAKE AIR HOSE,60.30 mm ID, 88.80 mm ID x 295.10 mm, SAE J20R4

Air Cleaner To Coupler

1шт.

22

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

84194249

KIT

Cold Weather Breather Kit; See Figure 02-05B

1шт.
