Артикул
Название
Примечание
Количество

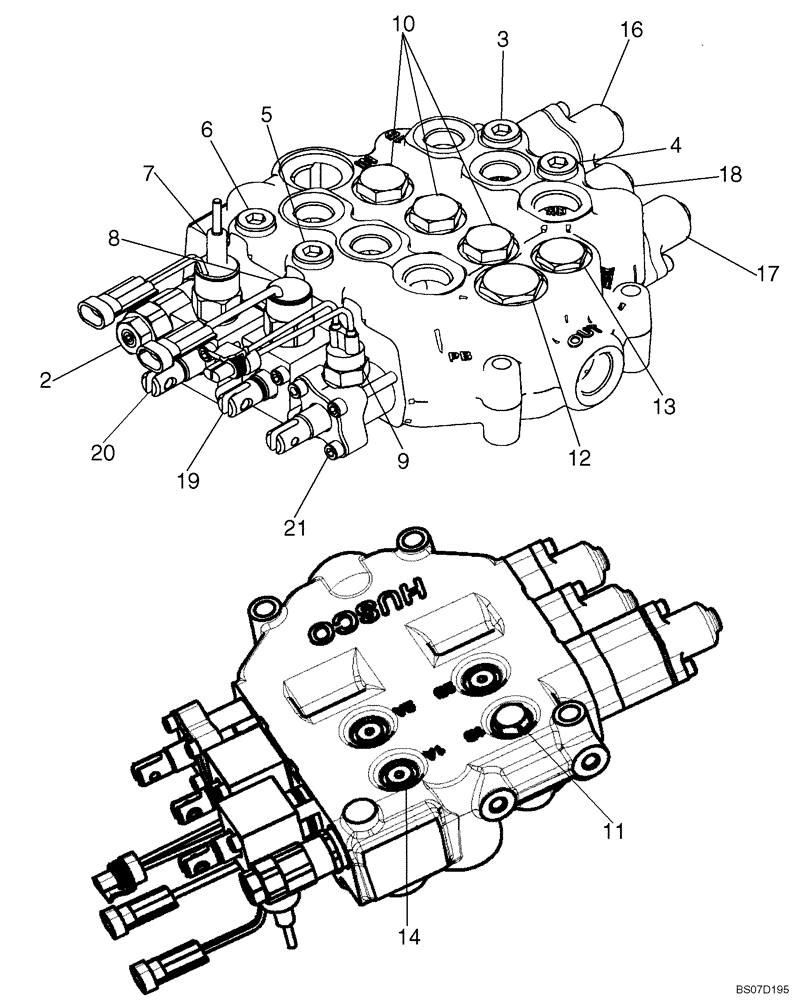

87583285
VALVE
Manual Control Valve
1шт.
1
87610349
SEAL KIT
Seal Replacement Kit; See Fig. 08-18
1шт.
2
87610350
VALVE PRESSURE RELIE
Main Relief Valve, 210 Bar (3050 psi); See Fig. 08-20
1шт.
3
87576153
VALVE
Workport Relief Valve, 215 Bar; See Fig. 08-21
1шт.
4
87445935
VALVE
Workport Relief Valve, 230 Bar; See Fig. 08-21
1шт.
5
87445943
VALVE
Workport Relief Valve, 260 Bar; See Fig. 08-21
1шт.
6
87445932
VALVE
Workport Anti-Cavitation; See Fig. 08-21
1шт.
7
87445988
SOLENOID,Spool Lockout, With Manual Override
Spool Lock Out Solenoid, Manual; See Fig. 08-29
1шт.
8
87445987
CARTRIDGE,Spool Lockout, NON-Manual Override
Spool Lock Out Solenoid, Non-Manual; See Fig. 08-30
1шт.
9
87446617
SWITCH
Auxiliary Spool Interlock Switch; See Fig. 08-22
1шт.
10
87576157
DAMPING VALVE
Check Valve Group; See Fig. 08-23
3шт.
11
87610351
VALVE,M14 x 1.5
Check Valve Group; See Fig. 08-23
1шт.
12
87576158
PLUG
Plug Assembly; See Fig. 08-23
1шт.
13
87576160
PLUG
Plug Assembly; See Fig. 08-23
1шт.
14
87610352
PLUG
Plug Assembly
3шт.
15
87576162
PLUG
Plug Assembly, Metric; Not Illustrated; See Fig. 08-23
1шт.
16
87576163
SPOOL
Spool End Group, Detent; See Fig. 08-31
1шт.
17
87576168
SPOOL
Spool End Group; See Fig. 08-27
1шт.
18
87576169
SPOOL
Spool End Group; See Fig. 08-32
1шт.
19
87611848
SPOOL
Spool End Group; See Fig. 08-30
1шт.
20
87611849
SPOOL
Spool End Group; See Fig. 08-35
1шт.
21
87611850
SPOOL
Spool End Group; See Fig. 08-28
1шт.
Выбрано товаров: 22
