Артикул
Название
Примечание
Количество

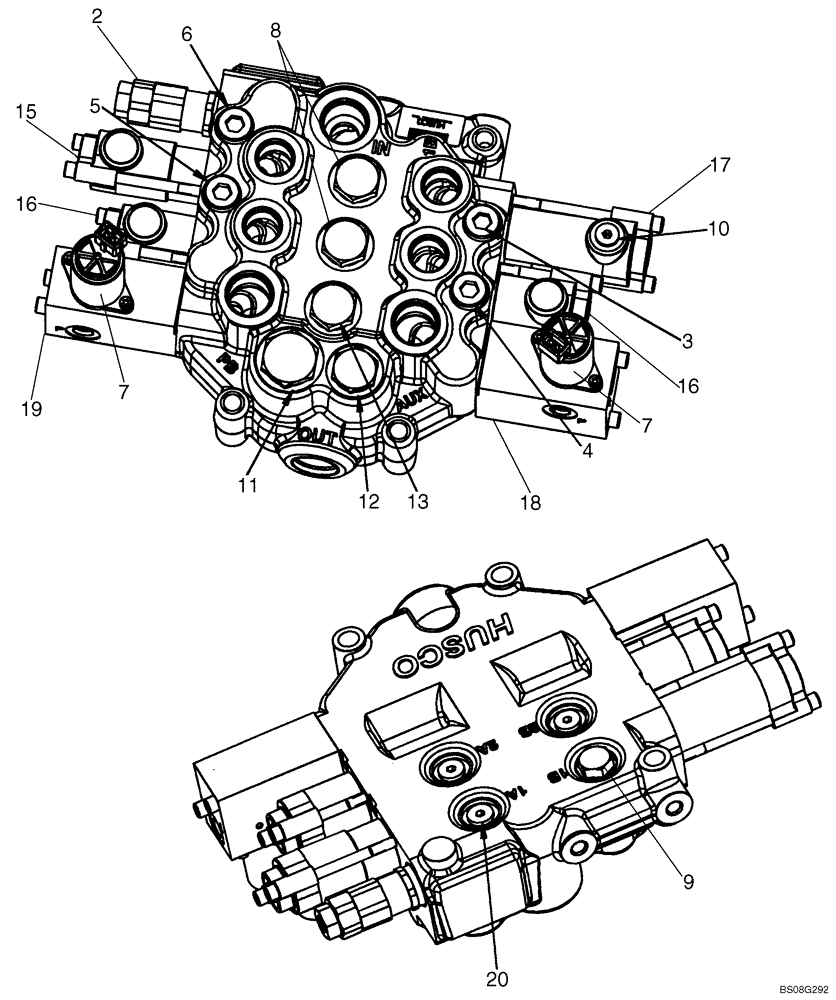

87546975
HYDRAULIC VALVE
Manual Control Valve; Pilot Control Models With Hydraulic Attachment
1шт.
1
87610517
SEAL KIT
Seal Replacement Kit; See Fig. 08-19
1шт.
2
87610350
VALVE PRESSURE RELIE
Main Relief Valve, 210 Bar (3050 psi); See Fig. 08-20
1шт.
3
87576153
VALVE
Workport Relief Valve, 215 Bar; See Fig. 08-21
1шт.
4
87445935
VALVE
Workport Relief Valve, 230 Bar; See Fig. 08-21
1шт.
5
87445943
VALVE
Workport Relief Valve, 260 Bar; See Fig. 08-21
1шт.
6
87445932
VALVE
Workport Anti-Cavitation; See Fig. 08-21
1шт.
7
87576154
SOLENOID
High Flow Solenoids For EH Auxiliary
2шт.
8
87576157
DAMPING VALVE
Check Valve Group; See Fig. 08-23
2шт.
9
87610351
VALVE,M14 x 1.5
Check Valve Group; See Fig. 08-23
1шт.
10
87610530
PLUG,7/16" - 20
Plug Assy
1шт.
11
87576158
PLUG
Assembly; See Fig. 08-23
1шт.
12
87576160
PLUG
Assembly; See Fig. 08-23
1шт.
13
87576161
PLUG
Assembly
1шт.
14
87576162
PLUG
Assembly, Metric; Not Illustrated; See Fig. 08-23
1шт.
15
87610531
SPOOL
Spool End Group; See Fig. 08-24
1шт.
16
87610532
SPOOL
Spool End Group; See Fig. 08-25
2шт.
17
87610533
REPAIR KIT
Spool End Group; See Fig. 08-26
1шт.
18
87611845
SPOOL
Spool End Group; EHPV; Incl. Ref 7; See Fig. 08-33
1шт.
19
87611846
SPOOL
Spool End Group; EHPV; Incl. Ref 7; See Fig. 08-34
1шт.
20
87610352
PLUG
Plug Assembly
3шт.
Выбрано товаров: 21
