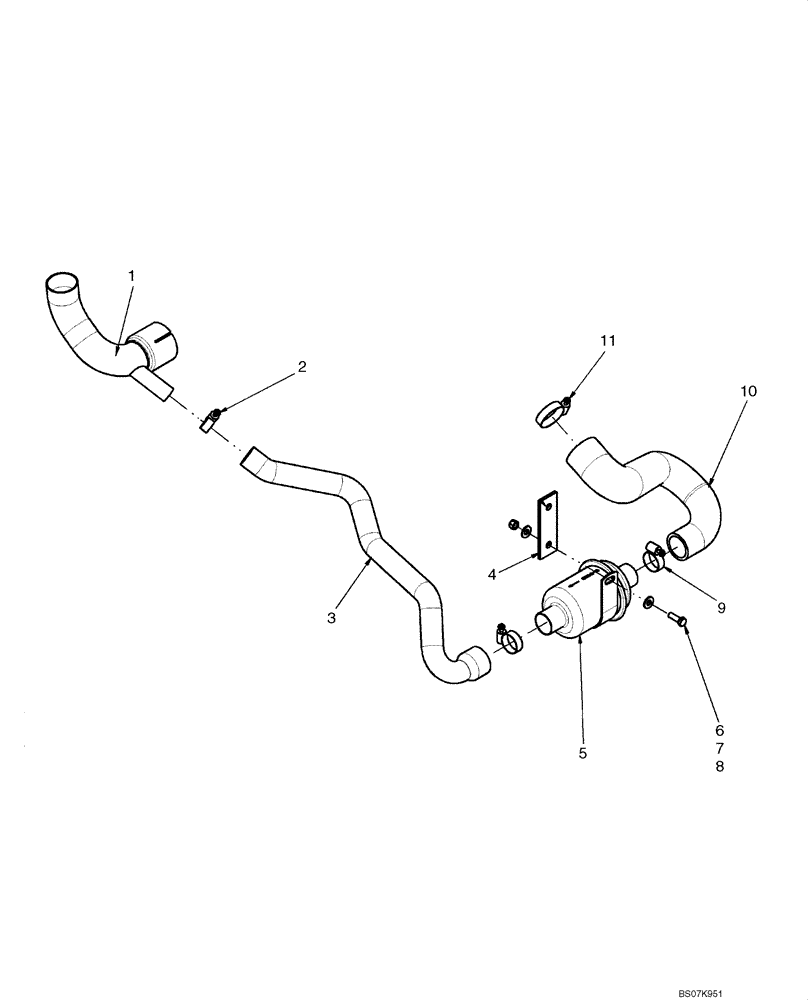

Запчасти Case IH 435 (02-04) - EXHAUST SYSTEM - ASPIRATOR; BSN 408012 (02) - ENGINE

87635867

SERVICE KIT

Aspirator; Incl 1 - 11

1шт.

1

87659186

EXHAUST SYSTEM PIPE

Tailpipe, Aspirator

1шт.

2

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

3

87659189

HOSE,25.40 mm ID, 38.00 mm ID, SAE 20R4 Class D1

Tailpipe To Aspirator Valve; No Longer Used, Order 87718215

1шт.

3

87718215

HOSE,25.40 mm ID, 38.00 mm ID, SAE 20R4 Class D1

Tailpipe To Aspirator Valve; If Used

1шт.

3

84138177

HOSE,24.50 mm ID, 38.00 mm ID x 382.10 mm, SAE J20R4 Class D1 or SAE J200

Tailpipe To Aspirator Valve

1шт.

4

87516260

BRACKET

Aspirator Mount; No Longer Used, Order 87718214

1шт.

4

87718214

BRACKET

Aspirator Mount; If Used

1шт.

4

87490990

BRACKET, SUPPORTING

Aspirator Mount

1шт.

5

406089A2

VALVE

Aspirator Check Valve

1шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

8

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

9

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

10

87575128

INTAKE AIR HOSE,50.00 mm ID x 148.80 mm, SAE 20R4

Air Cleaner To Aspirator Valve; No Longer Used, Order 87718216

1шт.

10

87718216

INTAKE AIR HOSE,38.00 mm ID, 50.00 mm ID x 143.70 mm, SAE 20R4 Class D1

Air Cleaner To Aspirator Valve; If Used

1шт.

10

84138639

INTAKE AIR HOSE,38.00 mm ID, 50.00 mm ID x 200.30 mm, SAE J200

Air Cleaner To Aspirator Valve

1шт.

11

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

1шт.

11

84137995

HOSE CLAMP,SAE #36 OD

Hose Clamp Turnkey Grip #36

1шт.
