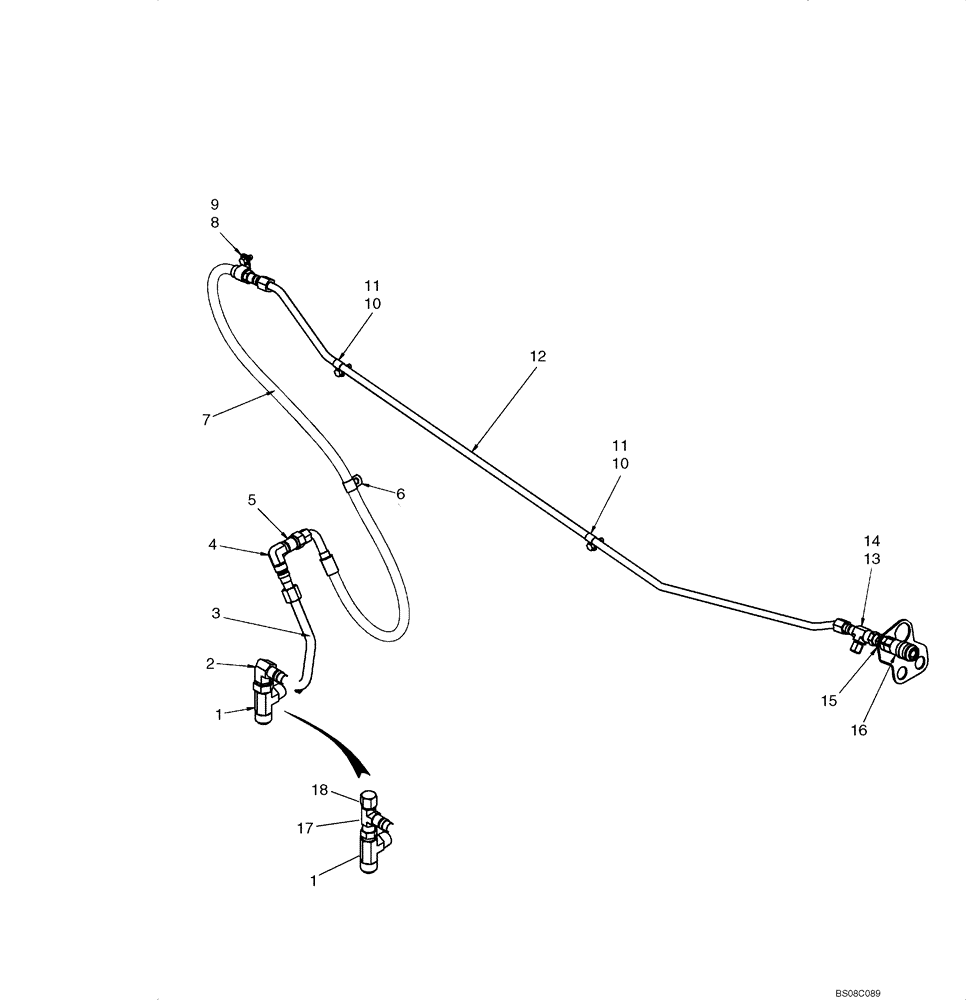

Запчасти Case IH 435 (08-08) - HYDRAULICS - CASE DRAIN (08) - HYDRAULICS

87685965

SERVICE KIT

Kit, Loader Arm Case Drain; Incl 1 - 16

1шт.

1

87690479

TEE

Tee, Male 37Fl 1 X 3/4 X 3/4 NPTF; If used

1шт.

1

87039438

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

If Used

1шт.

2

87612748

ELBOW

If Used

1шт.

3

87659232

HYD TUBE,15.9 mm OD x 224.6, 114.9 mm L

Tube, Loader Arm Case Drain

1шт.

4

86513091

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

5

87029966

REDUCER,7/8" - 14 JIC x 3/4" - 16 JIC

1шт.

6

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

7

87412461

HOSE ASSY.

Hose, Case Drain, 1300mm (51 3/16 in.)

1шт.

8

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

9

87029930

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 5/8"

1шт.

10

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

11

87029931

SCREW,Hex Washer, 5/16" - 18 x 1"

2шт.

12

87453779

HYD TUBE,12.7 mm OD x 1475.7, 310.5 mm L

Tube, Case Drain

1шт.

13

87029963

HYD CONNECTOR,3/4" Male JIC x 3/4" Male JIC x 3/4" Female JIC

Tee, Swivel 37Fl 1/2 X 1/2 X 3/8

1шт.

14

574342

CAP,9/16" - 18 JIC

1шт.

15

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

16

87019286

COUPLING

FF Coupler, .38 Fem 8MBF

1шт.

17

86513011

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

If Used

1шт.

18

129200

CAP,7/8" - 14 JIC

If Used

1шт.
