Запчасти Case IH 435 (08-07) - HYDRAULICS - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS

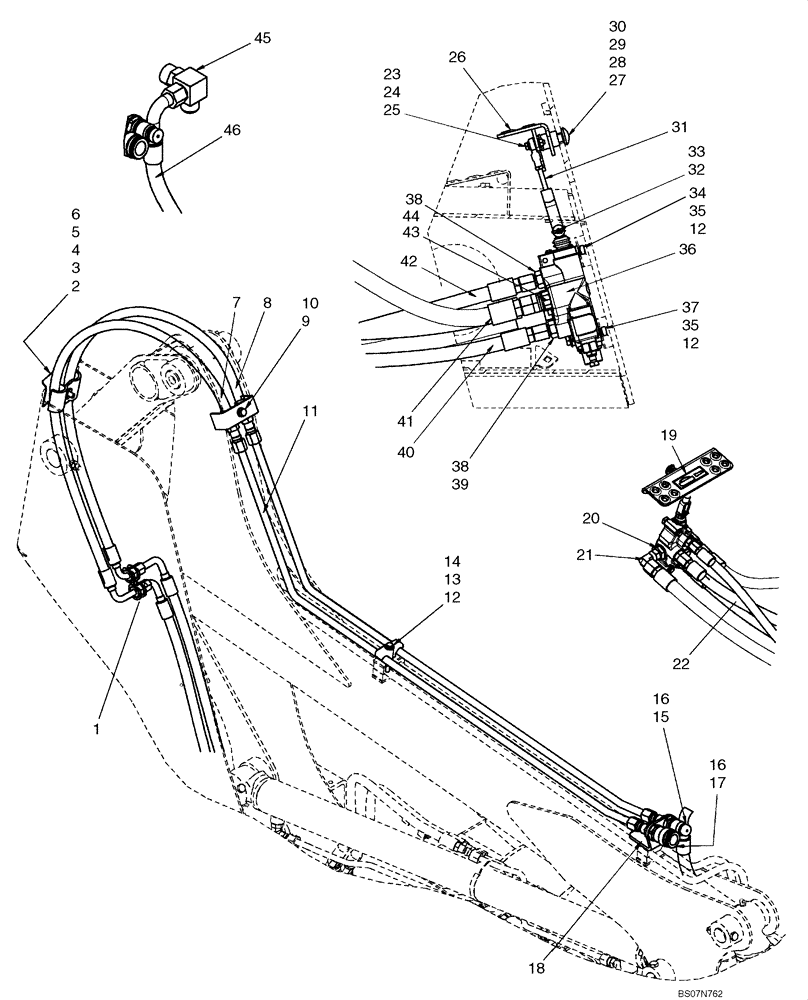

Схема запчастей Case IH 435 - (08-07) - HYDRAULICS - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS
3
22
37
6
45
36
8
9
1
31
43
15
23
35
13
18
40
4
26
5
32
2
27
29
39
12
33
38
44
35
42
19
14
25
21
34
28
17
16
7
11
46
16
24
20
10
30
38
41
12
12

Артикул

Название

Примечание

Количество

1

87301328

SNAP RING

Retaining Ring "E" Style #98 Plated

4шт.

2

436500A1

PLATE

Hose Routing Guard

1шт.

3

276433A1

CLAMP

1шт.

4

256690A1

SPACER

1шт.

5

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

6

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

7

87429655

HOSE ASSY.

Hose, Secondary Auxiliary, 1388mm (54 21/32 in.)

1шт.

8

87429656

HOSE ASSY.

Hose, Secondary Auxiliary, 1354mm (53 5/16 in.)

1шт.

9

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

Screw, Hex Washer Head, 3/8 X 1 3/4 in.

1шт.

10

87429702

BRACKET

Hose Support Bracket

1шт.

11

87429605

TUBE,15.88 mm OD x 960.7, 920.9 mm L

Tube, Secondary Auxiliary

2шт.

12

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

13

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

14

D120613

CLAMP,20mm ID

1шт.

15

87417308

COUPLING, BREAK AWAY

Coupler, 1/2 Male Quick Disconnect; If Used

1шт.

15

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

16

595460

BHD LOCK NUT,7/8" - 14

2шт.

17

393394A1

COUPLING, BREAK AWAY

Coupler, 1/2 Female Quick Disconnect; If Used

1шт.

17

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

18

87444404

BRACKET

1шт.

19

139618A1

DECAL

Decal, Auxiliary Hydraulic Control

1шт.

20

129878A1

FITTING

1шт.

21

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

22

87456810

HOSE ASSY.

Hose, Secondary Auxiliary Outlet, 1275mm (50 3/16 in.)

1шт.

23

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

24

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

25

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

26

87423833

PEDAL ASSY.

If Used

1шт.

26

87741562

PEDAL

1шт.

27

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

1шт.

28

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

29

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

30

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

Bronze Bushing

1шт.

31

87444161

LINKAGE

Aux

1шт.

32

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

Clevis Pin, Short

1шт.

33

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

34

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

35

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

36

87017348

VALVE

Secondary Auxiliary Valve; See Fig 08-36

1шт.

37

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

38

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 39; If Used

2шт.

38

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 39

2шт.

39

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

40

87429993

HOSE ASSY.

Hose, Secondary Auxiliary, 2413mm (95 in.)

1шт.

41

87456811

HOSE ASSY.

Hose, Secondary Auxiliary Inlet, 575mm (22 5/8 in.)

1шт.

42

87429992

HOSE ASSY.

Hose, Secondary Auxiliary, 2500mm (98 7/16 in.)

1шт.

43

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl 44

2шт.

44

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

45

129037A1

FITTING,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

46

87452084

HOSE ASSY.

Hose, Tank Return, 1395mm (54 15/16 in.)

1шт.
