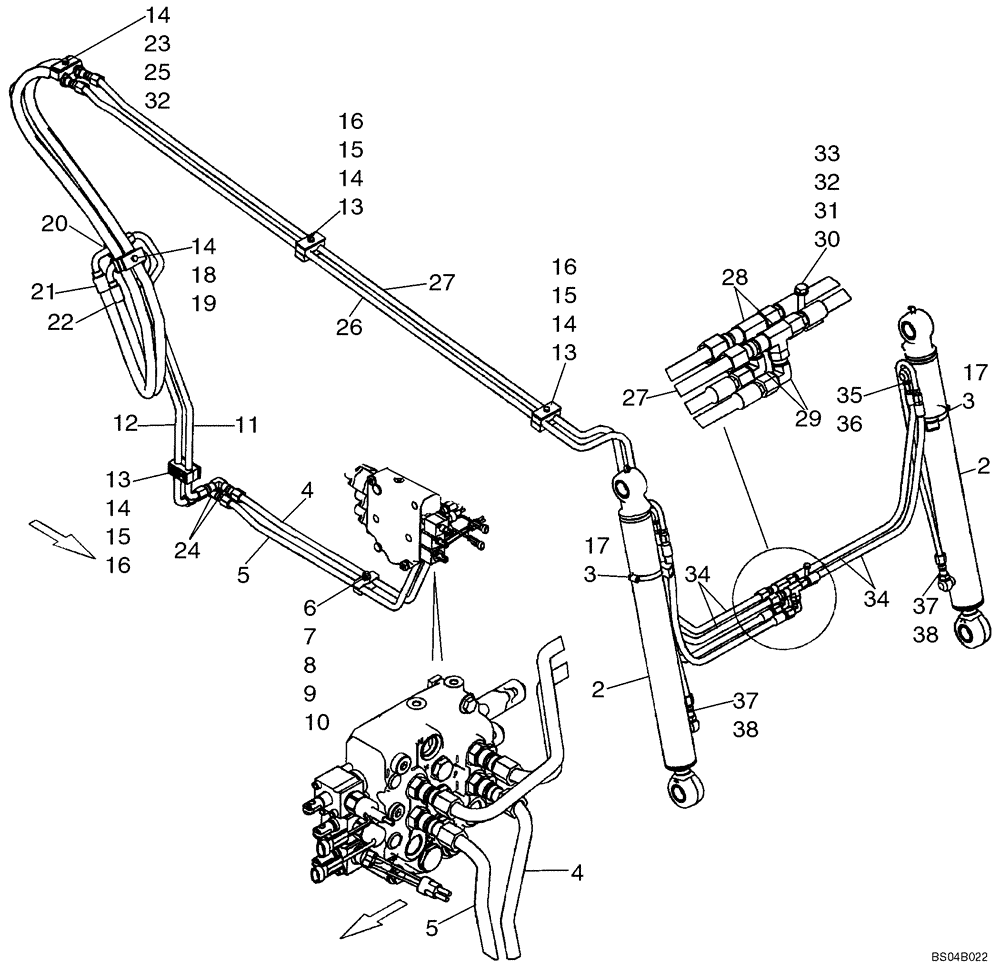

Запчасти Case IH 435 (08-02) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS

1

87583285

VALVE

Control Valve, Manual Control; See Fig 08-16

1шт.

1

87546974

HYDRAULIC VALVE

Control Valve, Pilot Control; See Fig 08-17

1шт.

2

259694A3

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 525mm Stroke

63.5 ID x 525 mm strk; See Figure 08-04

2шт.

2

259694A3R

435, w/ Tier 3 Engine,ASN N7M425032.

REMAN-HYD CYLINDER

2шт.

2

259694A3C

Return Number

CORE-HYD CYLINDER

2шт.

3

87040758

HOSE CLAMP,71.4mm - 95.2mm

2шт.

4

87436561

HYD TUBE,15.9 mm OD

Dump

1шт.

5

87436559

HYD TUBE,15.9 mm OD x 760.9, 352.5 mm L

Curl

1шт.

6

D120613

CLAMP,20mm ID

1шт.

7

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

8

86512554

NUT,M10 x 1.5, Cl 10

1шт.

9

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

10

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

11

418943A1

HYD TUBE

1шт.

12

418942A1

TUBE

1шт.

13

257857A1

CLAMP

2 piece

3шт.

14

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

5шт.

15

259905A1

SPACER

3шт.

16

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

3шт.

17

D38648

BLOCK

2шт.

18

225529A1

CLAMP,Dual, 25.4mm ID

2 piece

1шт.

19

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

20

87301328

SNAP RING

4шт.

21

281948A2

HOSE ASSY.,15.88mm ID x 1380mm L

1380 mm (54-3/8 in)

1шт.

22

293623A2

HOSE ASSY.,15.88mm ID x 1315mm L

1315 mm (51-7/8 in)

1шт.

23

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in ID; Two Piece

1шт.

24

86512932

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

25

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

26

323246A1

TUBE

Open End

1шт.

27

323248A1

TUBE

Closed End

1шт.

28

9846316

TEE,37 Degree, 3/4"-16 x 7/8"-14, Run

2шт.

29

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

30

A12032

CLAMP

1шт.

31

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

1шт.

32

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

33

9628098

NUT,M8 x 1.25, Cl 10

1шт.

34

284027A2

HOSE ASSY.,9.53mm ID x 740mm L

740 mm (29-1/8 in)

4шт.

35

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 36

2шт.

36

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

284030A2

PIPE

2шт.

38

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl. 39

2шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not Illustrated Separately

1шт.
