Запчасти Case IH 435 (06-31) - PUMP, TANDEM - FRONT (06) - POWER TRAIN

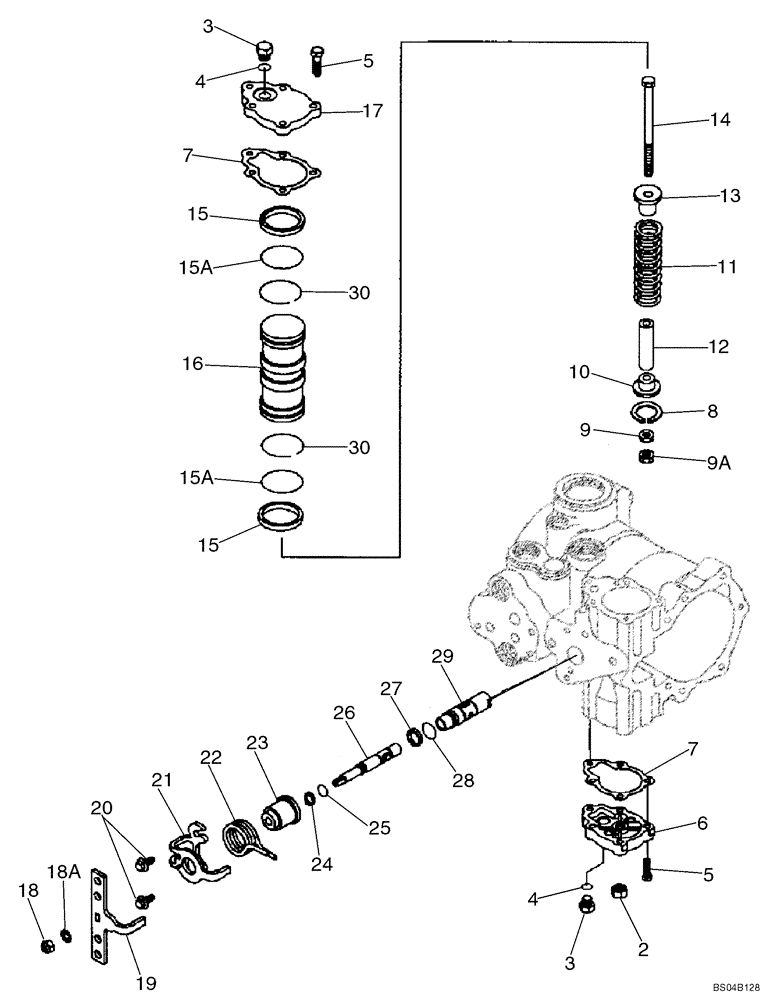

Схема запчастей Case IH 435 - (06-31) - PUMP, TANDEM - FRONT (06) - POWER TRAIN
5
3
30
26
11
15a
19
18a
13
24
4
15
18
3
8
7
6
2
14
4
25
22
12
10
20
17
30
29
28
16
15a
9a
21
7
27
23
15
5
9

Артикул

Название

Примечание

Количество

Front Pump

1шт.

87643160

PUMP,42.9 CC

Incl. 2 - 30

1шт.

87643160R

435 TIER 3, ASN N7M425032 (1/08-3/11)

REMAN-HYD PUMP

1шт.

87643160C

Return Number

CORE-HYDRAULIC PUMP

1шт.

2

N13260

NUT,Inverted Lock

5/8 NF

1шт.

3

76349

PLUG,9/16" - 18 ORB

Incl. 4

2шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

1/4 x 1-1/4; 8

10шт.

6

H436065

COVER

1шт.

7

N14063

GASKET

2шт.

8

N13255

RING

1шт.

9

86509310

NUT,3/8" - 24, Gr 5

1шт.

9b

324604A1

NUT,Lock

3/8 in

1шт.

10

N13241

GUIDE,1.292" OD

1шт.

11

N13226

SPRING

1шт.

12

N13242

SLEEVE

1шт.

13

N14666

GUIDE,1.292" OD

1шт.

14

370531A1

SCREW

1шт.

H673773

KIT

Incl. 15, 15A; Incl. Rings For Rear Pump Pistons

1шт.

15

N14668

RING, PISTON

Included in 140008A1 Seal Kit

4шт.

15a

511212

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

Included in 140008A1 Seal Kit

2шт.

140008A1

GASKET KIT

Overhaul Seal And Gasket Kit; Incl. (10) Rings, (20) O-Rings, (6) Gaskets, (2) Seals; Incl. Ref 7, 15, 15A, 24, 25, 27, 28, 30

1шт.

16

87039622

PISTON ASSY

Incl. 15, 15A, 30

1шт.

17

H436053

COVER

1шт.

18

H436054

SPECIAL NUT,Lock, 5/16" - 18

1шт.

18a

280278

LOCK WASHER,Ext Tooth, 5/16"

1шт.

19

436415A1

HANDLE

1шт.

20

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

2шт.

21

436416A1

BRACKET

1шт.

22

407060A1

SPRING

1шт.

23

87039613

GUIDE RING

1шт.

24

86993484

BACK-UP RING,0.390"

Included in 140008A1 Seal Kit

1шт.

25

86993475

O-RING

Included in 140008A1 Seal Kit

1шт.

26

87039614

SPOOL

Incl. 24, 25

1шт.

27

86993483

BACK-UP RING,0.643"

Included in 140008A1 Seal Kit

1шт.

28

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

Included in 140008A1 Seal Kit

1шт.

29

87039615

SLEEVE

Incl. 27, 28

1шт.

30

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

Included in 140008A1 Seal Kit

2шт.

Выбрано товаров: 38
