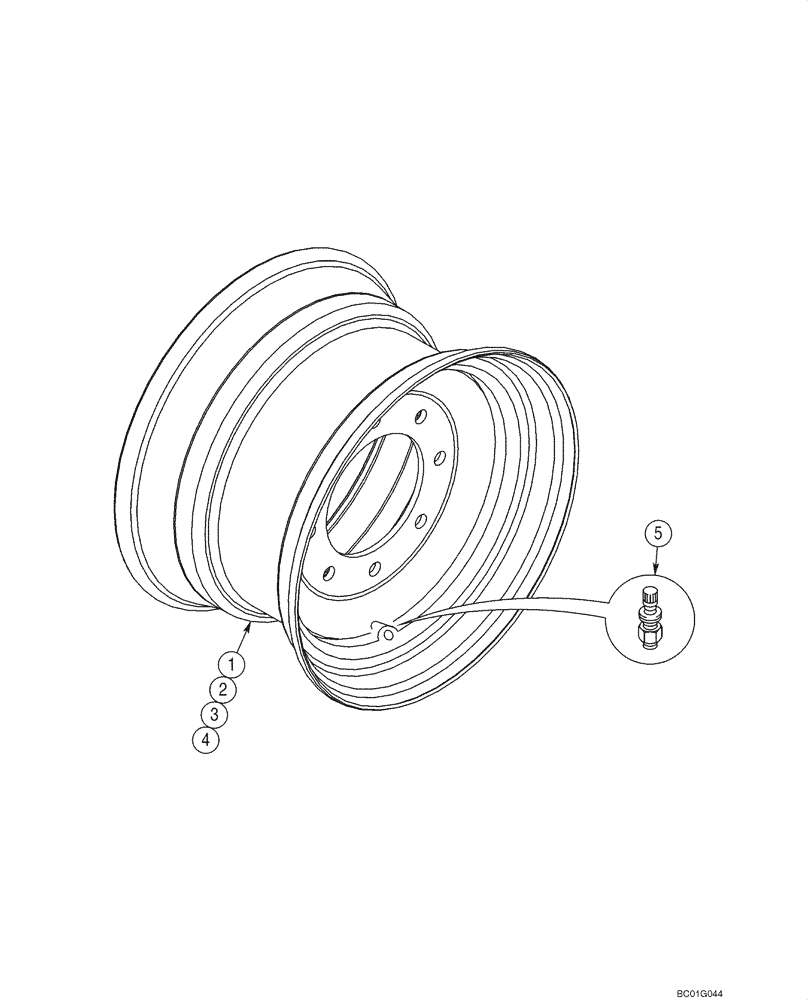

Запчасти Case IH 435 (06-27) - WHEELS (06) - POWER TRAIN

1

183300A3

RIM

WHEEL 16.5 x 9.75, Full Center; Used With 12 x 16.5 Tire

4шт.

1

448569A1

WHEEL ASSY

16.5 x 9.75; Stamped Center; Used With 12 x 16.5 Tire; Incl Ref 5,7

4шт.

2

248048A2

RIM

WHEEL 16.5 x 12; Full Center; Used With 33/15.5 x 16.5 Inch Tire

4шт.

5

294579A1

VALVE STEM

1шт.

6

86512498

FLANGE NUT,M16 x 2, Cl 10

Not Illustrated

32шт.

7

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

Nut, M16 X 2-6G 90 Deg Taper; Not Illustrated

32шт.
