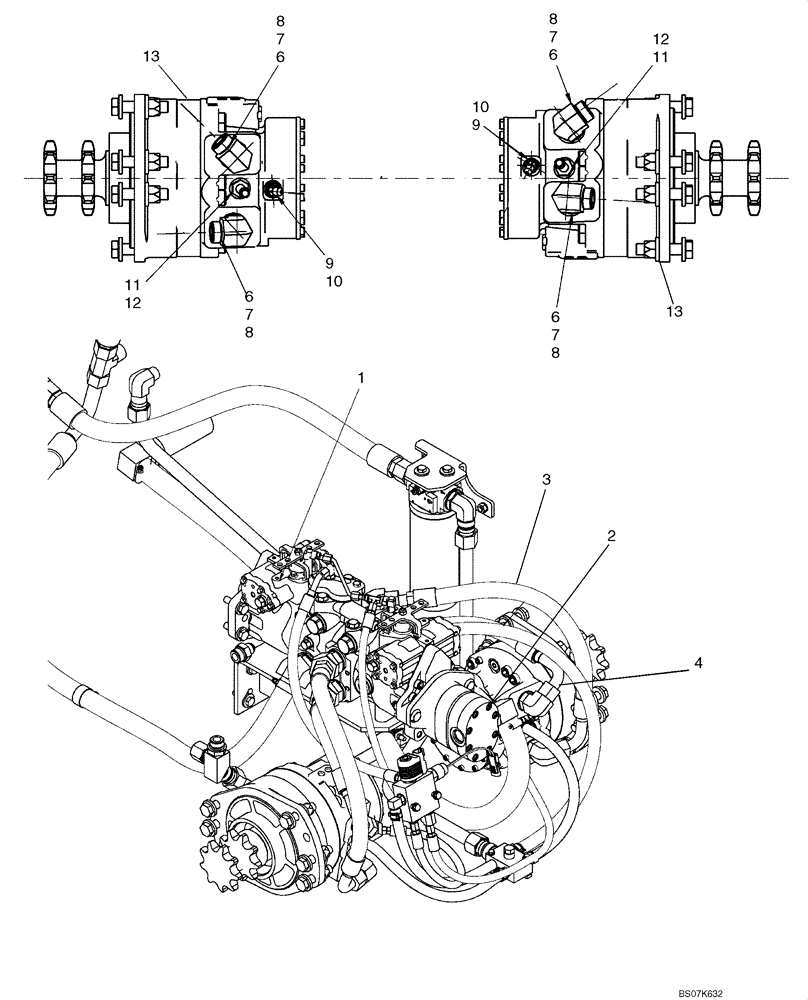

Запчасти Case IH 435 (06-12) - HYDROSTATICS - PUMP TO DRIVE MOTORS (06) - POWER TRAIN

1

87643160

PUMP,42.9 CC

Tandem Pump; See Fig 06-30 - 06-34

1шт.

87643160R

435 TIER 3, ASN N7M425032 (1/08-3/11)

REMAN-HYD PUMP

1шт.

87643160C

Return Number

CORE-HYDRAULIC PUMP

1шт.

2

87024695

PUMP,36 CC

Gear Pump; See Fig 06-18

1шт.

87024695R

435 TIER 3 , ASN N7M425032 (1/08-3/11)

REMAN-HYD PUMP

1шт.

87024695C

Return Number

CORE-HYDRAULIC PUMP

1шт.

3

87640178

HOSE,19.05mm ID x 635mm L

Pump To Motor Loop, 635mm (25 in.)

2шт.

4

87640177

HOSE

Pump To Motor Loop, 375mm (14 3/4 in.)

2шт.

5

REF

INSTRUCTION

Brake System; See Fig 07-01

1шт.

6

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl. 7, 8

4шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

9

87029964

HYD CONNECTOR,7/16" - 20 JIC x 9/16" - 18 ORB

Elbow, 45 Deg Adj 37Fl 1/4 x 3/8 Tube; Incl 10

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

11

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl 12

2шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

13

87035451

HYDRAULIC MOTOR

See Fig 06-20 - 06-22

2шт.

13

87035451R

Remanufactured Hydraulic Motor

REMAN-HYD MOTOR

2шт.

13

87035451C

Return Number

CORE-MOTOR HYDRAULIC

2шт.
