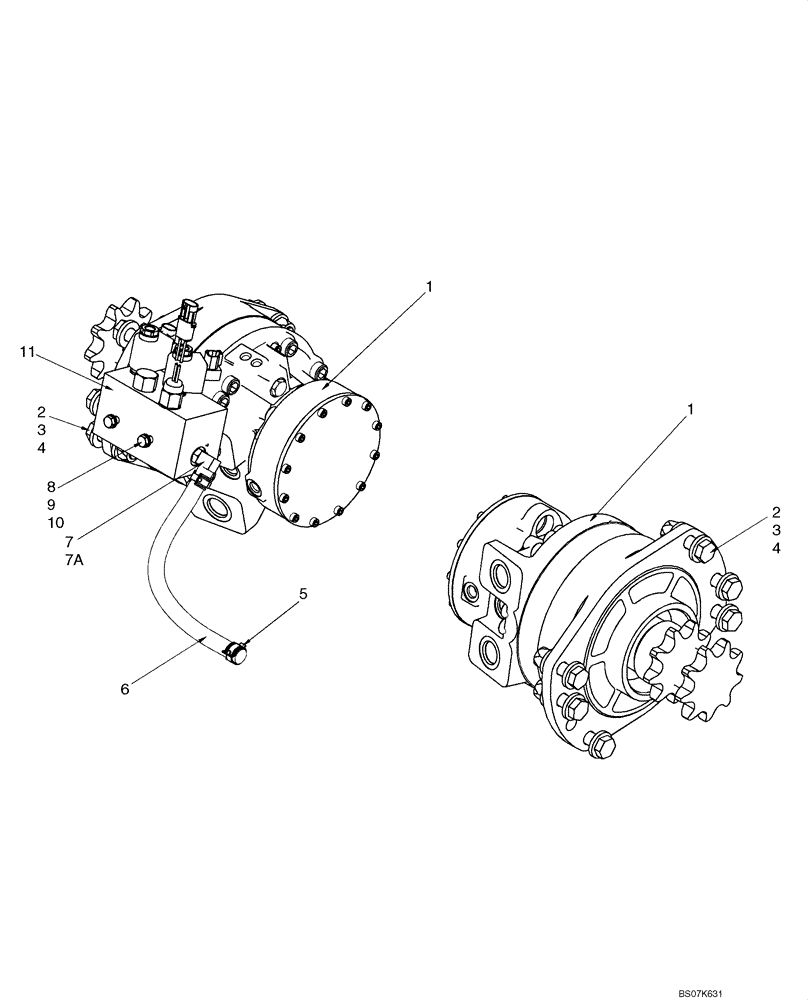

Запчасти Case IH 435 (06-10) - HYDROSTATICS - DRIVE MOTORS, ONE SPEED (PILOT) (06) - POWER TRAIN

1

87035451

HYDRAULIC MOTOR

One Speed Drive Motor; See Fig 06-20 - 06-22

2шт.

1

87035451R

Remanufactured Hydraulic Motor

REMAN-HYD MOTOR

2шт.

1

87035451C

Return Number

CORE-MOTOR HYDRAULIC

2шт.

2

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

12шт.

3

86625258

WASHER,17.5mm ID x 34mm OD x 5mm Thk

24шт.

4

86512555

NUT,M16 x 2, Cl 10

12шт.

5

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

6

87434275

HOSE,1/2" ID x 320mm L

Multi Valve Drain (12 19/32")

1шт.

7

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 7A

1шт.

7a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

9628098

NUT,M8 x 1.25, Cl 10

2шт.

11

87546971

HYDRAULIC VALVE

Pilot Brake Valve; See Ref 06-17A; If Used

1шт.

11

87756435

HYDRAULIC VALVE

Pilot Brake Valve; See Ref 06-17B

1шт.
