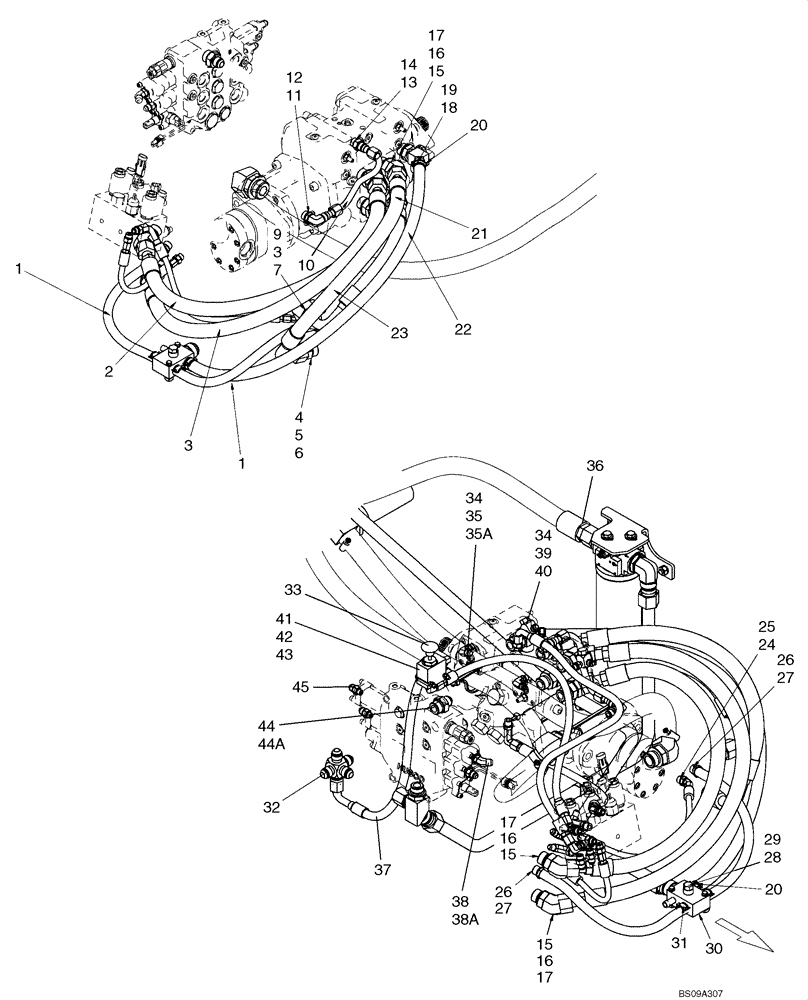

Запчасти Case IH 435 (06-08) - HYDROSTATICS - PUMP TO DRIVE MOTORS (PILOT CONTROL) (06) - POWER TRAIN

1

87015463

HOSE,12.7mm ID x 402mm L

Case Drain

2шт.

2

87640191

HOSE

895mm (35 1/4 in.)

1шт.

3

87640193

HOSE

Hose, 1010 (39 3/4 in.)

1шт.

4

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 5, 6

1шт.

5

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl. 8, 9

1шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

87554297

HYD TUBE,10.2 mm ID x 12.7 mm OD x 147, 99.2 mm L

Tube, Tandem Pump Supply

1шт.

11

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 12

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 14

1шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 16, 17

2шт.

16

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

18

87571937

ADAPTER

Incl 19

1шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

21

87640190

HOSE,19.05mm ID x 465mm L, SAE 100R13

Hose, 465mm (18 5/16 in.)

1шт.

22

87357123

HOSE

Hose, Pump Drain, 990mm (39 in.)

1шт.

23

87640192

HOSE

Hose, 690mm (27 3/16 in.)

1шт.

24

87029964

HYD CONNECTOR,7/16" - 20 JIC x 9/16" - 18 ORB

Elbow, 45 Deg 37FL 1/4 X 3/8 Tube; Incl 25

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl 27

2шт.

27

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

28

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 29

1шт.

29

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

87437351

MANIFOLD

Return Oil

1шт.

31

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

32

87546978

ADAPTER

Tee 5-Way

1шт.

33

87568435

DECAL

Boom Override

1шт.

34

87604074

ADAPTER

Connector 6 FJ X 6 MJ w/ 1.2

4шт.

35

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

2шт.

35a

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

36

87659222

Oil Cooler Bypass; See Fig 02-44

1шт.

37

87547043

HOSE,9.53mm ID x 773mm L

Dump Valve Supply

1шт.

38

87593247

ELBOW

45 Deg 37 Fl 3/8 x 1/4 Tube

1шт.

38a

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

39

87546979

ADAPTER

4 Orb-6Jic -6 Forb; Elbow Sideout

2шт.

40

76349

PLUG,9/16" - 18 ORB

3шт.

41

86624181

WASHER,M6

2шт.

42

86512440

NUT,M6, Cl 10

2шт.

43

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

44

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

1шт.

44a

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

45

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

3шт.

45a

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3шт.
