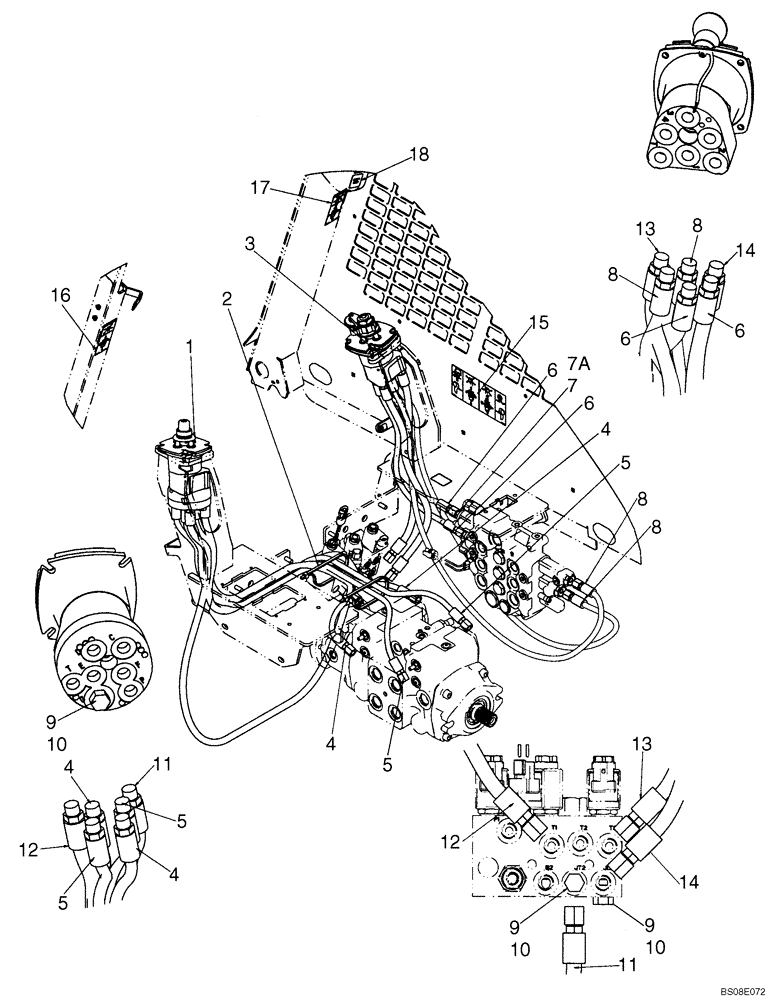

Запчасти Case IH 435 (06-02) - JOYSTICK CONTROL PLUMBING - ISO PATTERN (06) - POWER TRAIN

87617357

SERVICE KIT

ISO Pattern Pilot Control; Incl 1 - 18

1шт.

1

87600622

CONTROL BLOCK

Joystick Valve, ISO Pattern, LH; See Fig 06-05

1шт.

2

87600623

VALVE

Joystick Valve, ISO Pattern, RH; See Fig 06-06

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

4

87607167

HOSE

850mm (33 15/32 in.)

2шт.

5

87607133

HOSE

1025mm (40 11/32 in.)

2шт.

6

87547059

HOSE,6.35 mm ID x 770.00 mm

2шт.

7

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 7A

1шт.

7a

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

87547030

HOSE,6.35 mm ID x 918.00 mm

2шт.

9

76349

PLUG,9/16" - 18 ORB

Incl. 10

3шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

11

87564004

HOSE,9.65 mm ID x 2865.00 mm

1шт.

12

87607536

HOSE

Joystick Supply Or Drain, 860mm (33 7/8 in.)

1шт.

13

87607537

HOSE

Joystick Drain, 515mm (20 9/32 in.)

1шт.

14

87607540

HOSE

Joystick Supply, 570mm (22 7/16 in.)

1шт.

15

87715688

DECAL

Decal, Control Identification, ISO - Pattern

1шт.

16

87715691

DECAL

Decal, ISO - Pattern, LH

1шт.

17

87715692

DECAL

Decal, ISO - Pattern, RH

1шт.

18

87746891

DECAL

Decal, ISO - Pattern

1шт.
