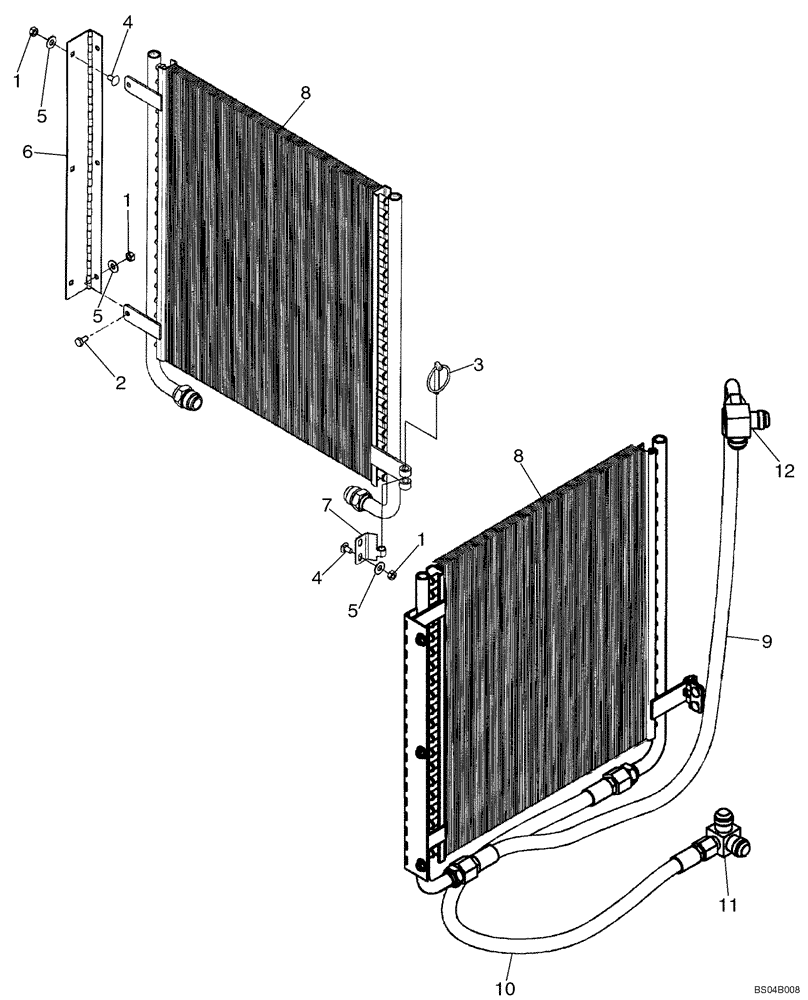

Запчасти Case IH 435 (06-03) - OIL COOLER - MOUNTING (HIGH FLOW) (06) - POWER TRAIN

1

7770

NUT,Hex, 1/4 - 20, Cl 5

7шт.

2

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

3шт.

3

270184

LINCH PIN,6.35mm OD

1шт.

4

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

5шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

7шт.

6

87604793

HINGE

Hinge With Slotted Holes, Heavy Duty Door; See Fig. 09-15

1шт.

6

87019622

HINGE

Hinge With Round Holes, Standard Door; See Fig. 09-15

1шт.

7

87604792

LATCH

Replaces 87025876

1шт.

8

87611853

COOLER

Oil Cooler; Heavy Duty Door; See Fig. 09-15

1шт.

8

87037881

COOLER, OIL

Standard Door; See Fig. 09-15

1шт.

9

87422600

HOSE ASSY.

High Flow Oil Cooler

1шт.

10

87415778

HOSE ASSY.

1шт.

11

87436935

TEE

16MJ x 12MJ x 10MJ

2шт.

12

87422599

TEE

1шт.
