(04-22) - MOUNTING - LAMP ASSY, COMBINATION, REAR

Запчасти Case IH 435 (04-22) - MOUNTING - LAMP ASSY, COMBINATION, REAR (04) - ELECTRICAL SYSTEMS

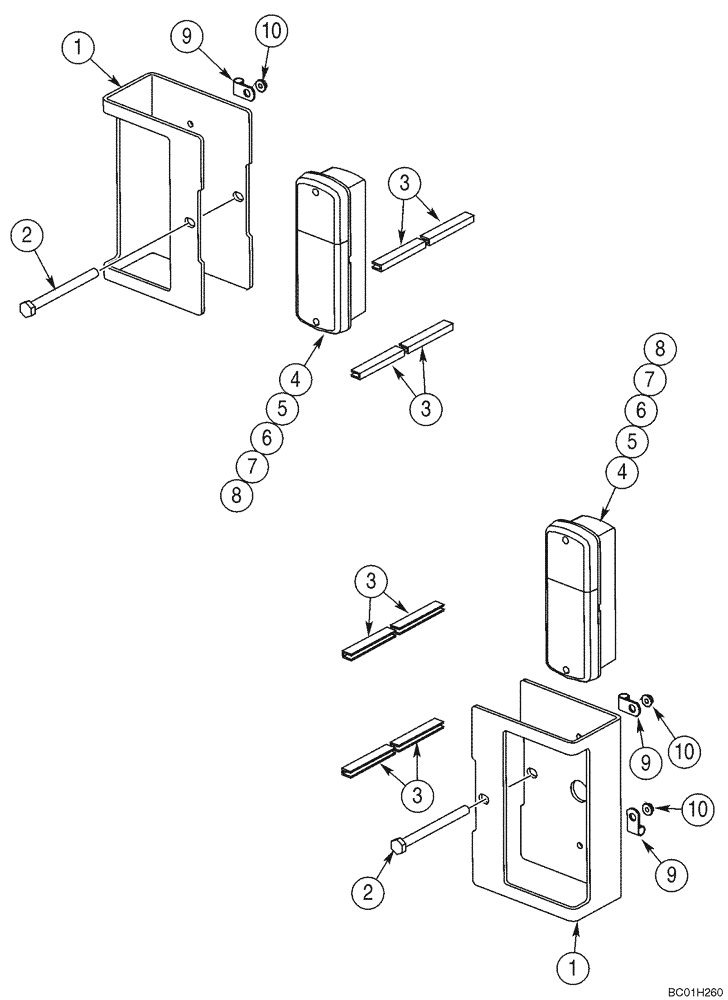

Схема запчастей Case IH 435 - (04-22) - MOUNTING - LAMP ASSY, COMBINATION, REAR (04) - ELECTRICAL SYSTEMS
3
10
6
8
4
5
1
2
6
1
3
4
10
3
9
7
3
7
9
2
8
9
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

367573A1

SUPPORT

2шт.

2

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.

3

D55218

SEAL, GLASS,76mm L

76 mm (3 in); Cut From F42827

10шт.

4

177239A2

LAMP, TAIL

LIGHT, TAIL Assembly; Combination; Incl. 5 - 8

2шт.

5

187140A1

LENS

1шт.

6

529068

BULB,#1156, 12V, 21W

Turn Signal

1шт.

7

190003452246

BULB

Stop And Tail

1шт.

8

86622300

ELEC CONNECTOR

4 Junct.

1шт.

9

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

10

86511444

FLANGE NUT,Hex, M6 x 1

4шт.
