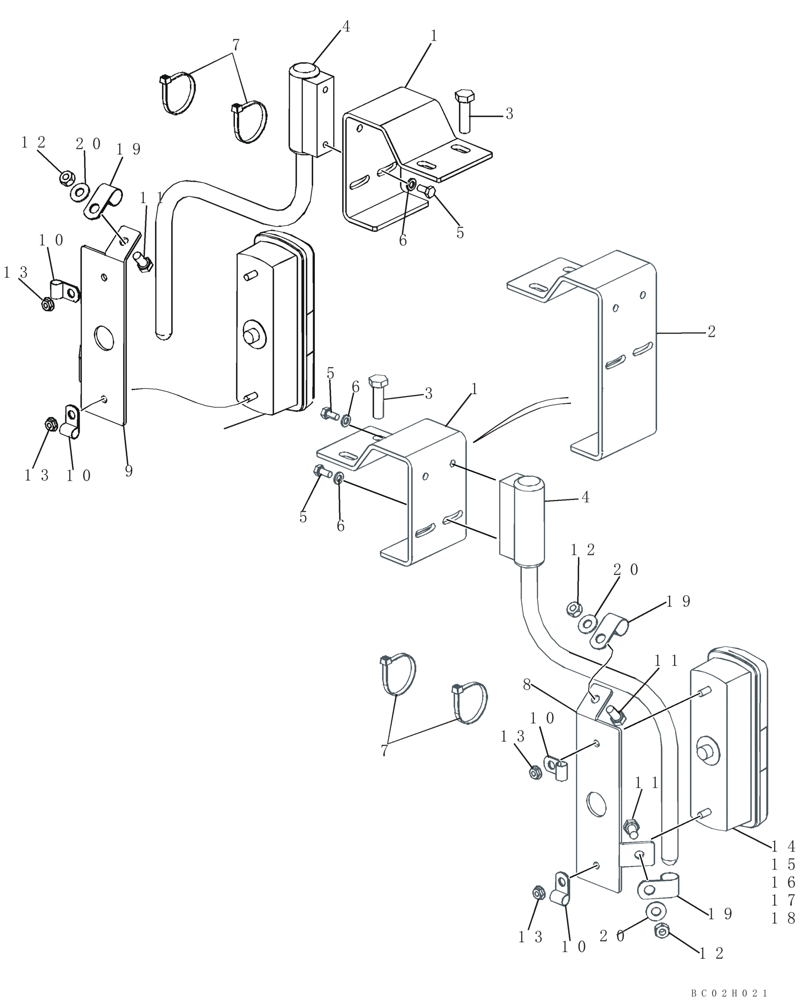

Запчасти Case IH 435 (04-21) - MOUNTING - LAMP ASSY, COMBINATION, FRONT (04) - ELECTRICAL SYSTEMS

1

308649A1

SUPPORT

If Used

1-2шт.

2

451776A1

BRACKET

1-2шт.

3

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

2шт.

4

310860A1

SUPPORT

Mounting

2шт.

5

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.

8

308570A1

SUPPORT

1шт.

9

308571A1

SUPPORT

1шт.

10

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

12

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

13

86511444

FLANGE NUT,Hex, M6 x 1

4шт.

14

233152A2

LIGHT

Assembly; Combination; Incl. 14 - 17

2шт.

15

282074A1

LENS

1шт.

16

1094366R1

BULB

12V, 21W; Turn Signal

1шт.

17

3131234R1

BULB,P25-2, 12V, 5W

1шт.

18

277904A1

ELEC CONNECTOR,Female, 4 Pin

1шт.

19

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

20

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
