Запчасти Case IH 435 (04-15) - CONTROLS, RIGHT HAND - HANDLE (04) - ELECTRICAL SYSTEMS

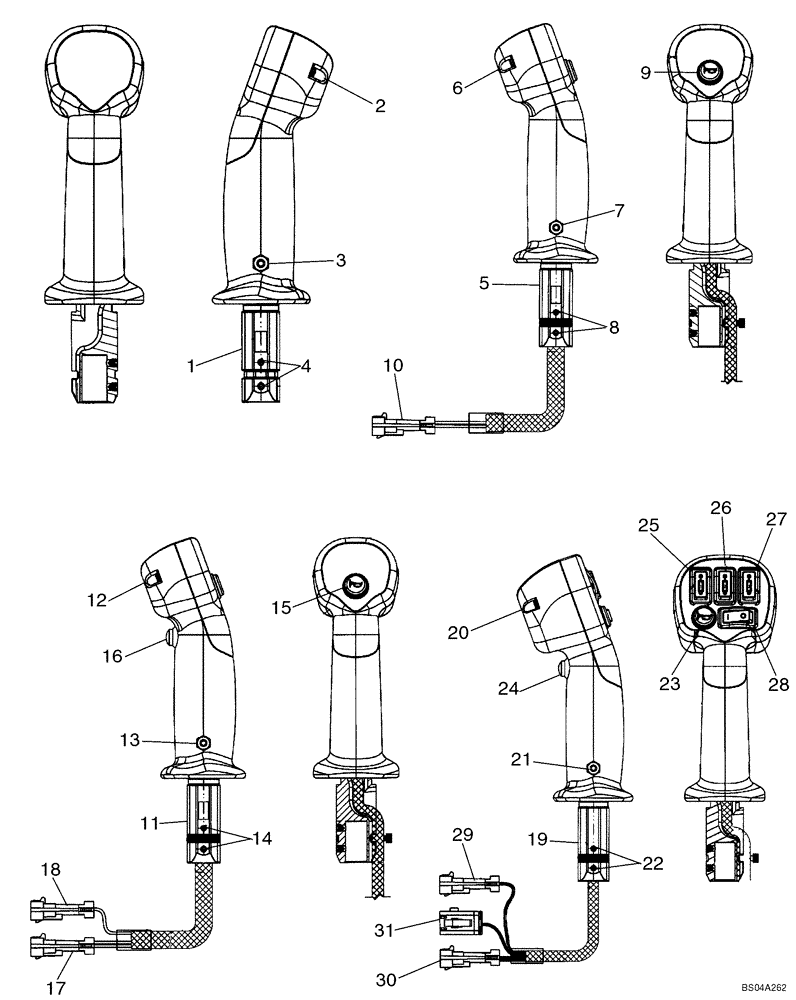

Схема запчастей Case IH 435 - (04-15) - CONTROLS, RIGHT HAND - HANDLE (04) - ELECTRICAL SYSTEMS
8
24
16
18
29
19
10
9
20
15
21
14
17
7
28
13
3
5
1
6
25
26
27
2
11
12
22
31
30
23
4

Артикул

Название

Примечание

Количество

HANDLE WITHOUT SWITCHES

1шт.

87424016

HANDLE

Control; No Switches; Incl. 1 - 4; Replaced By 87458322, See Figure 04-15A

1шт.

1

87426999

ADAPTER

Mount

1шт.

2

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

3

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

4

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

HANDLE WITH HORN

1шт.

87424017

HANDLE

Horn; Incl. 5 - 10; Replaced By 87458323, See Figure 04-15A

1шт.

5

87426999

ADAPTER

Mount

1шт.

6

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

7

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

8

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

9

87427729

SWITCH

Horn

1шт.

10

253294A1

CONNECTOR, ELEC

CONNECTOR

1шт.

HANDLE WITH HORN, RIDE CONTROL

1шт.

87424019

HANDLE

Horn, Ride Control; Incl. 11 - 18; Replaced By 87458324, See Figure 04-15A

1шт.

11

87426999

ADAPTER

Mount

1шт.

12

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

13

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

14

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

15

87427729

SWITCH

Horn

1шт.

16

87427352

SWITCH

Trigger; On/Off; Ride Control

1шт.

17

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

18

253294A1

CONNECTOR, ELEC

CONNECTOR

1шт.

HANDLE WITH HORN, RIDE CONTROL, FRONT ELECTRIC

1шт.

87424695

HANDLE

Horn, Ride Control; Front Electric; Incl. 19 - 31; Replaced By 87458325, See Figure 04-15A

1шт.

19

87426999

ADAPTER

Mount

1шт.

20

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

21

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

22

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

23

87427729

SWITCH

Horn

1шт.

24

87427352

SWITCH

Trigger; On/Off; Ride Control

1шт.

25

87427685

SWITCH

Rocker; Momentary; Front Electric Switch 1

1шт.

26

87427686

SWITCH

Rocker; Momentary; Front Electric Switch 2

1шт.

27

87427687

SWITCH

Rocker; Momentary; Front Electric Switch 3

1шт.

28

87427688

SWITCH

Rocker; 0n/Off; Front Electric Switch 4

1шт.

29

253294A1

CONNECTOR, ELEC

CONNECTOR

1шт.

30

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

31

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

1шт.

Выбрано товаров: 39
