(04-13) - HARNESS, FRONT - AUXILIARY

Запчасти Case IH 435 (04-13) - HARNESS, FRONT - AUXILIARY (04) - ELECTRICAL SYSTEMS

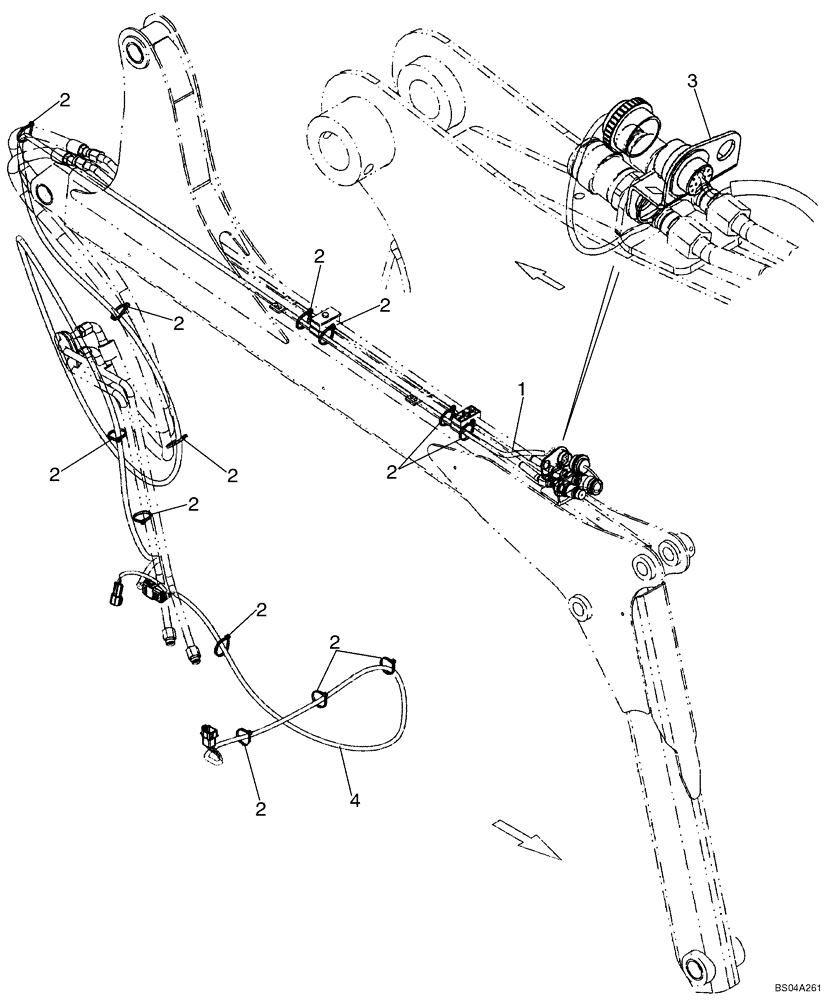

Схема запчастей Case IH 435 - (04-13) - HARNESS, FRONT - AUXILIARY (04) - ELECTRICAL SYSTEMS
2
2
2
2
2
2
2
2
3
4
2
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87441574

WIRE HARNESS

Front Auxiliary Electric

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

13шт.

3

87412448

BRACKET

See Figure 06-02

1шт.

4

87039334

HARNESS

Front Electric, Chassis

1шт.

223837A1

SWITCH

Rocker; Auxiliary Control; See Figure 04-09

1шт.

A149800

FUSE,10 Amp

10 amp

1шт.
