Артикул
Название
Примечание
Количество

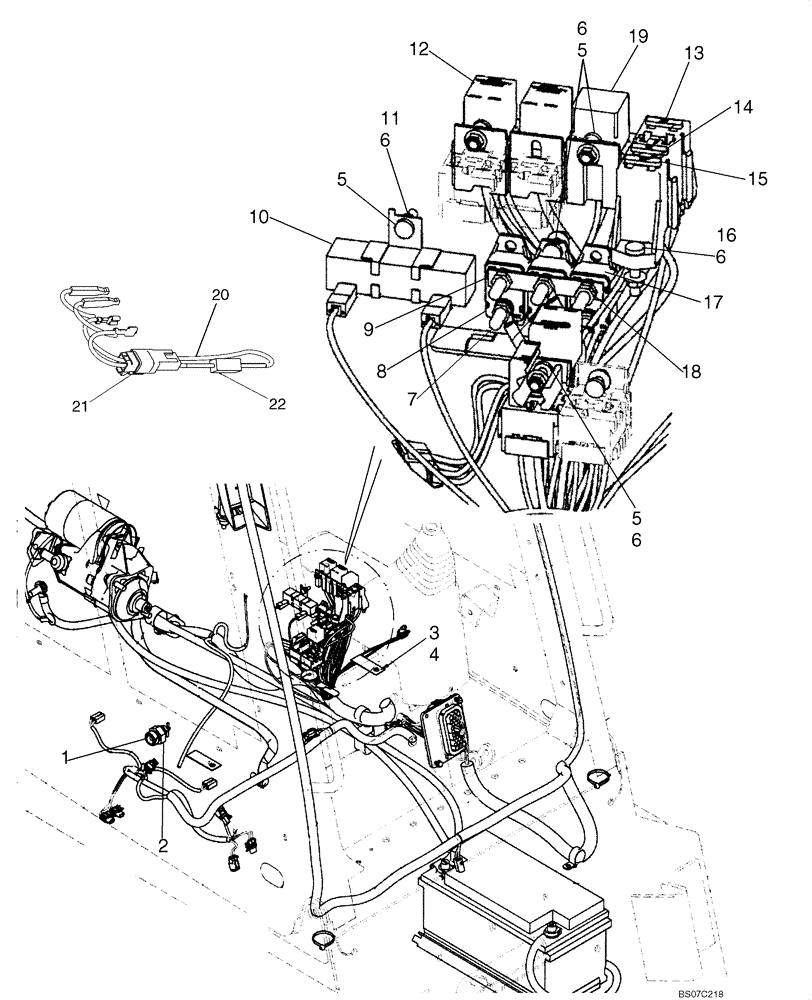

See Figure 04-07 For Rear Section Of Chassis Harness Shown
1шт.
REF
INSTRUCTION
Harness, Main Chassis; See Figure 04-07, Ref 1
1шт.
1
87033027
ADAPTER
Adapter; -12 SAE To 1/2 NPTF
1шт.
3
A37179
CLIP
2шт.
4
86511444
FLANGE NUT,Hex, M6 x 1
2шт.
5
86511826
SCREW,Phillips Drive, Pan HD, M5 x 16mm
8шт.
6
43416
KIT
M5
9шт.
7
247333A1
CAP
6шт.
8
303884A1
BREAKER
15 amp; Incl. Hardware; If Used
1шт.
8
87049166
CIRCUIT BREAKER
15 amp; Incl. Hardware; If Used
1шт.
9
245861C1
BAR
1шт.
11
86624181
WASHER,M6
4шт.
12
87436836
RELAY,12V, 40 Amp
40 amp, 12V; Heavy Duty; If Used
4шт.
12
87355337
RELAY,12V, 45A
45 Amp; MFG # Stamped On Case - 4RD 931 680-01; If Used
4шт.
13
A149802
FUSE
20 amp; Lights Relay
1шт.
14
A149801
FUSE,Lt Blue, 15 Amp
15 Amp; Interlock, Instrument Panel
1шт.
15
A149800
FUSE,10 Amp
10 amp; Horn, Backup Alarm
1шт.
16
86585710
SCREW,Phillips Drive, Pan HD, M5 x 25mm, Cl 4.8
2шт.
17
303886A1
BREAKER
40 amp; Incl. Hardware; If Used
2шт.
17
87049165
CIRCUIT BREAKER
40 amp; Incl. Hardware; If Used
2шт.
19
314451A1
RELAY
40 Amp Heavy Duty; If Used
1шт.
19
87355337
RELAY,12V, 45A
45 Amp; MFG # Stamped On Case - 4RD 931 680-01; If Used
1шт.
87604790
SERVICE KIT
Incl. 87603548 And Instructions
1шт.
20
87603548
HARNESS
Kit, Interlock Resistor Jumper; Incl. 21, 22
1шт.
21
87603121
HARNESS
Interlock Adapter
1шт.
22
87603120
RESISTOR
100 Ohm 5W
1шт.
87611148
SERVICE KIT
Light Power Cable; See Service Bulletin 2006/12-NSL; Incl. 87602205 And Instructions
1шт.
87602205
CABLE
Light Power Cable
1шт.
Выбрано товаров: 31
