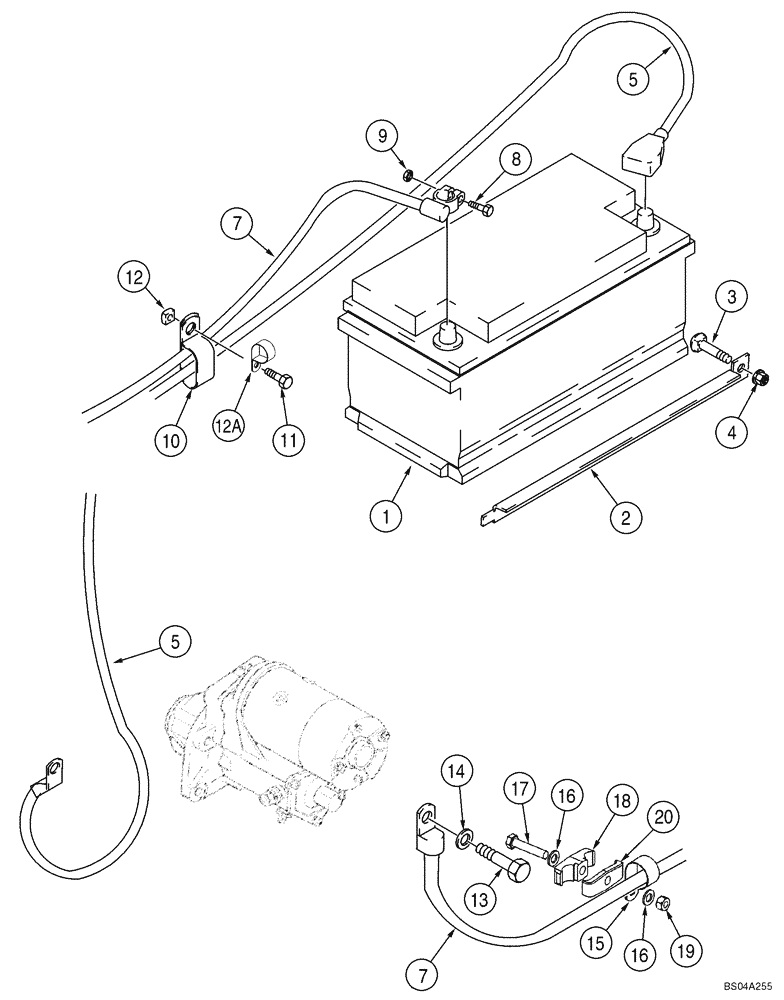

Запчасти Case IH 435 (04-04) - BATTERY - CABLES (04) - ELECTRICAL SYSTEMS

1

87403835

WET BATTERY,Group 49, 12V, 850CCA

12V

1шт.

2

221592A1

STEM

1шт.

3

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

1шт.

4

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

5

87033046

CABLE

Positive

1шт.

7

338030A1

CABLE ASSY.

Negative

1шт.

8

NSS

NOT SOLD SEPARAT

Bolt

1шт.

9

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

10

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

11

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

12

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

1шт.

12a

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1шт.

13

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

14

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

15

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

If Used

1шт.

16

140017

WASHER,M10 x 20mm OD x 2mm Thk

If Used

2шт.

17

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

If Used

1шт.

18

D120679

CLAMP,Tube, 1/2"

If Used

1шт.

19

86512554

NUT,M10 x 1.5, Cl 10

If Used

1шт.

20

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

If Used

1шт.
