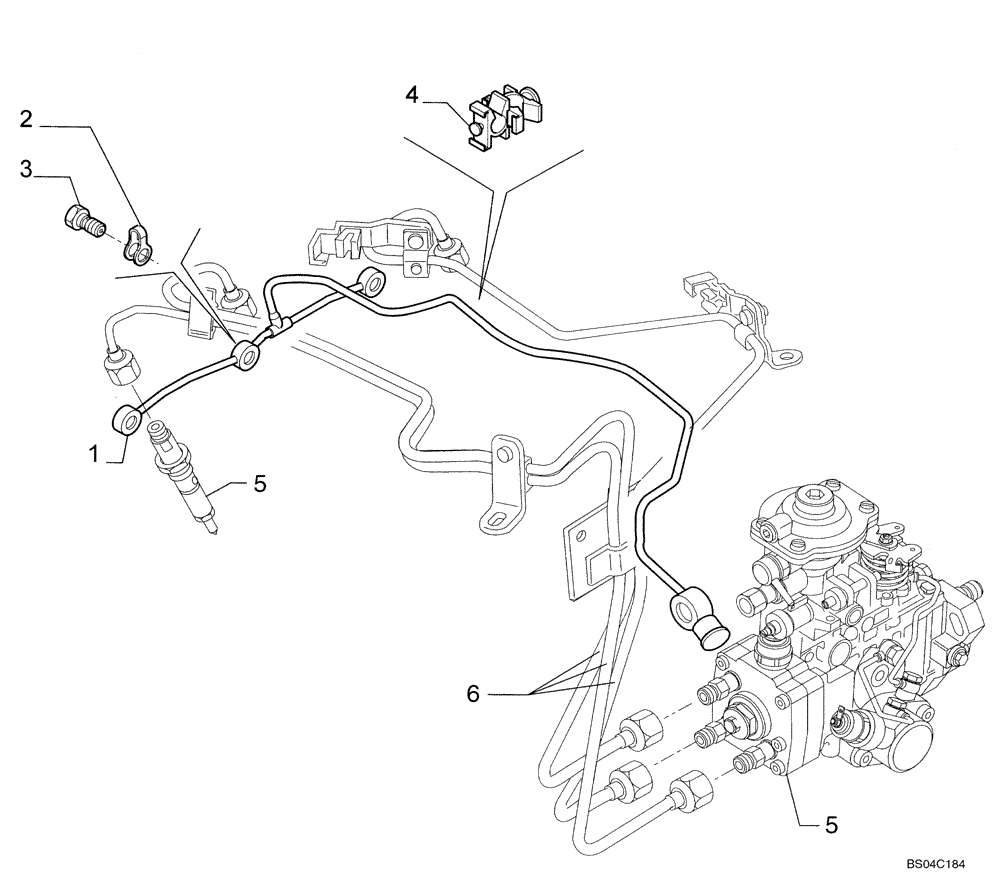

Запчасти Case IH 435 (03-11) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

2853035

TUBE,257 mm Length

Incl. Banjo Connector 2852118

1шт.

2852118

FITTING

Banjo Connector

1шт.

99478191

Screw; Mounting Hardware for Banjo Connector 2852118

CAP

1шт.

772054

SEALING WASHER

Mounting Hardware for Banjo Connector 2852118

2шт.

2

4895305

SEAL

3шт.

3

8097552

SCREW

3шт.

4

2852521

CLIP

1шт.

5

REF

INSTRUCTION

See Figure 03-03, Fuel Injection Pump

1шт.

5.

REF

INSTRUCTION

See Figure 03-04, Fuel Injector

1шт.

6

REF

INSTRUCTION

See Figure 03-07

1шт.
