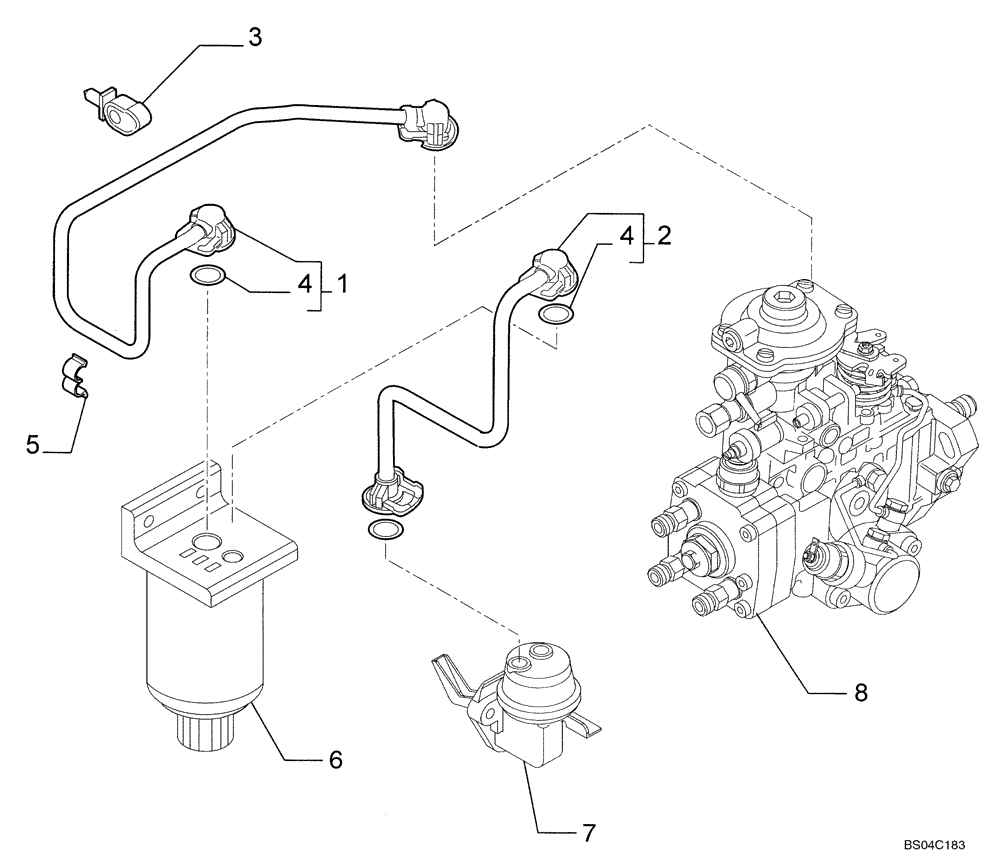

Запчасти Case IH 435 (03-10) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

2853845

PIPE

Replaces 2830494

1шт.

2

2853848

PIPE

Replaces 2830497

1шт.

3

2852111

CLIP

Replaces 4897762; Used with 2830494

1шт.

4

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

4шт.

5

4893428

CLAMP

1шт.

6

REF

INSTRUCTION

See Figure 03-08, Fuel Filter

1шт.

7

REF

INSTRUCTION

See Figure 03-09, Fuel Pump

1шт.

8

REF

INSTRUCTION

See Figure 03-03, Injection Pump

1шт.
