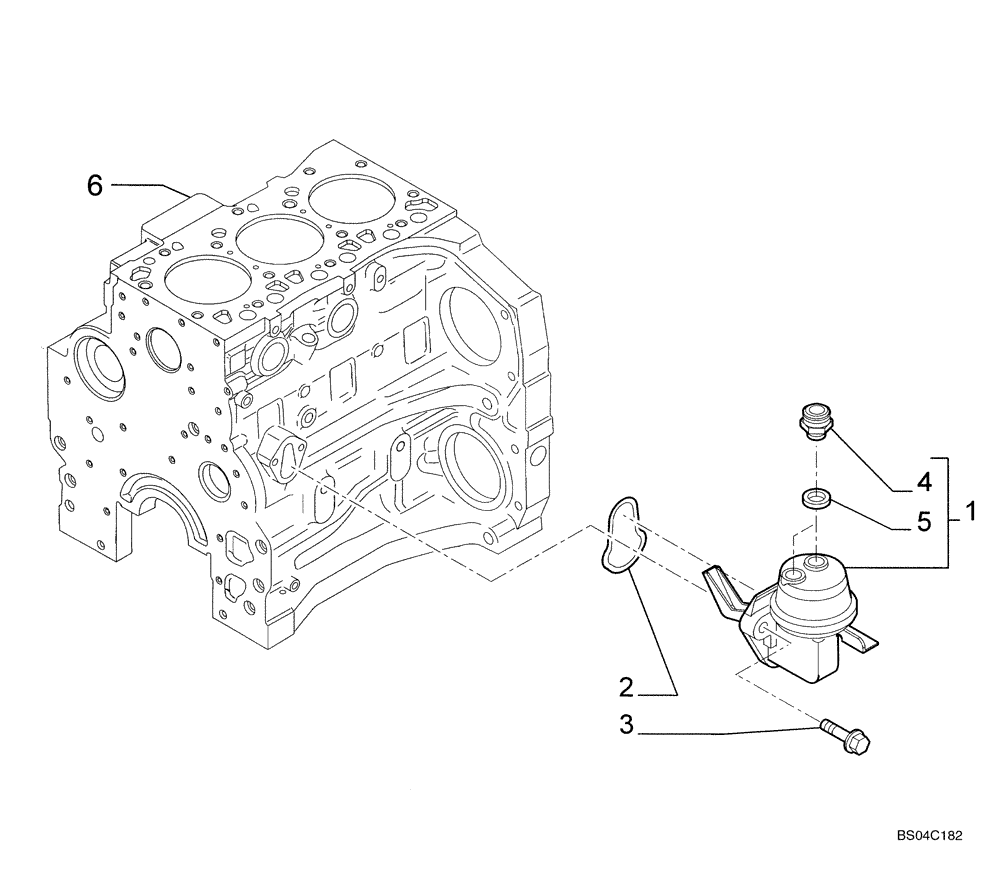

Запчасти Case IH 435 (03-09) - FUEL PUMP (03) - FUEL SYSTEM

1

2830266

FUEL PUMP

Incl. 4, 5

1шт.

2830266R

REMAN-FUEL LIFT PUMP

435 BSN N7M425032 (3/04-12/07)

1шт.

2830266C

FUEL PUMP

Return Number

1шт.

2

2830156

O-RING,70 Duro, M2.62 Thk

1шт.

3

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

4

4890964

FITTING,M12 x 1.5

2шт.

5

4894721

SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk

2шт.

6

REF

INSTRUCTION

See Figure 02-09, 02-10, Cylinder Block

1шт.
