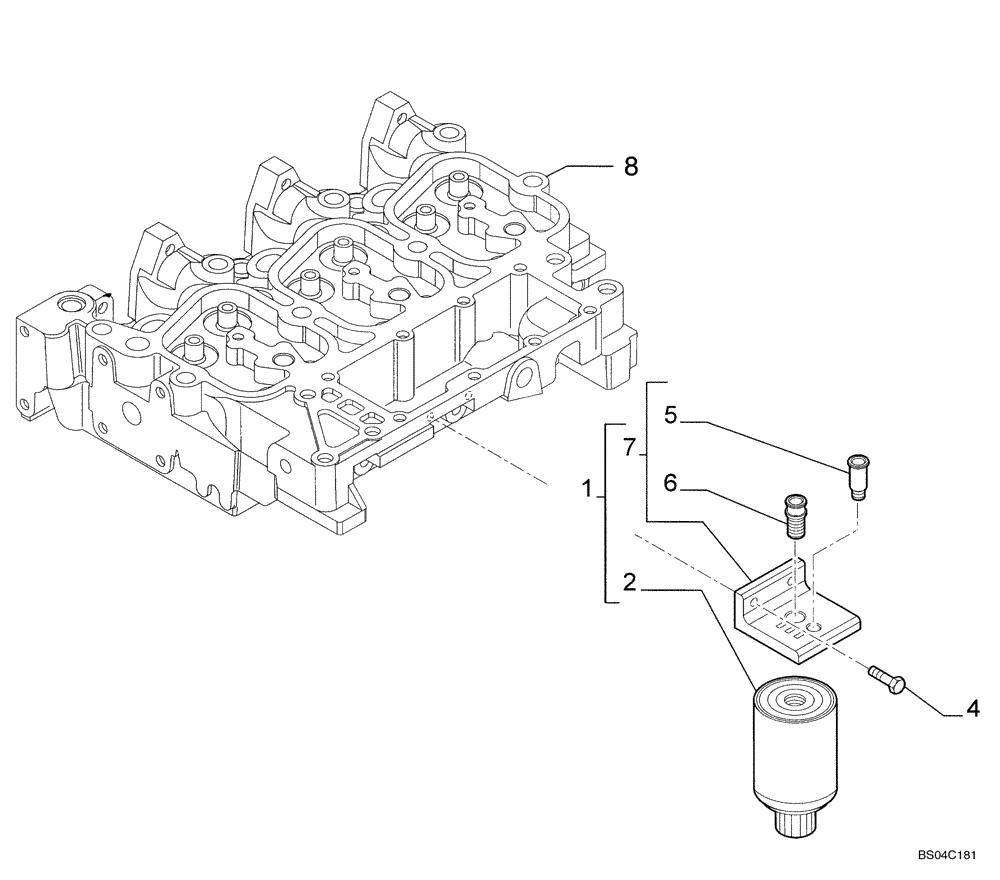

Запчасти Case IH 435 (03-08) - FUEL FILTER (03) - FUEL SYSTEM

1

2853032

FUEL FILTER

Fittings & o-rings are NSS

1шт.

2

87803268

FUEL FILTER

1шт.

4

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

5

2830453

ADAPTER,M16 x 1.5

1шт.

6

2830454

ADAPTER,M12 x 1.5

1шт.

7

2830455

FILTER HEAD

1шт.

8

REF

INSTRUCTION

See Figure 02-14, Cylinder Head

1шт.
