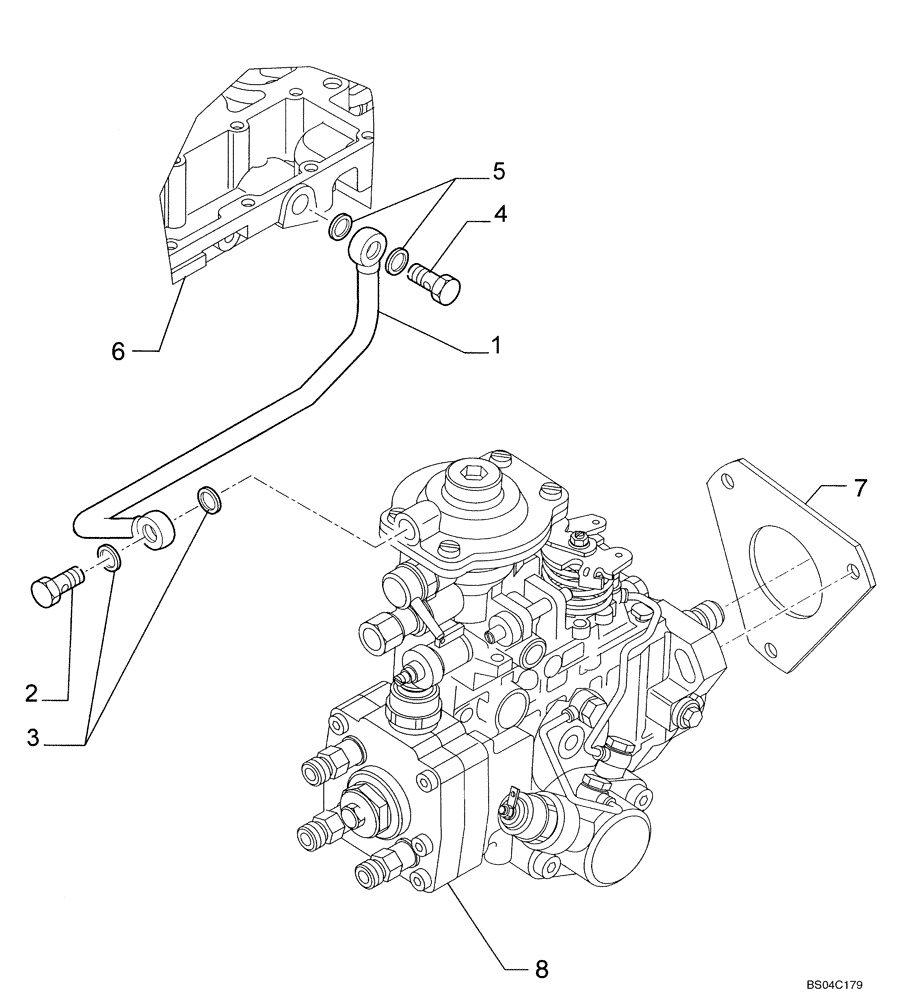

Запчасти Case IH 435 (03-06) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

4893079

RIGID TUBE

1шт.

2

2830360

BANJO BOLT

M8 x 1

1шт.

3

2830507

SEALING WASHER,7.8mm ID x 14mm OD x 1mm Thk

2шт.

4

4893096

BANJO BOLT,Hex, M10 x 1 x 19mm

1шт.

5

4899010

SEALING WASHER,10.2mm ID x 13.4mm OD x 1mm Thk

2шт.

6

REF

INSTRUCTION

See Figure 02-14, Cylinder Head

1шт.

7

REF

INSTRUCTION

See Figure 03-05, Injection Pump, Control

1шт.

8

REF

INSTRUCTION

See Figure 03-03, Injection Pump

1шт.
