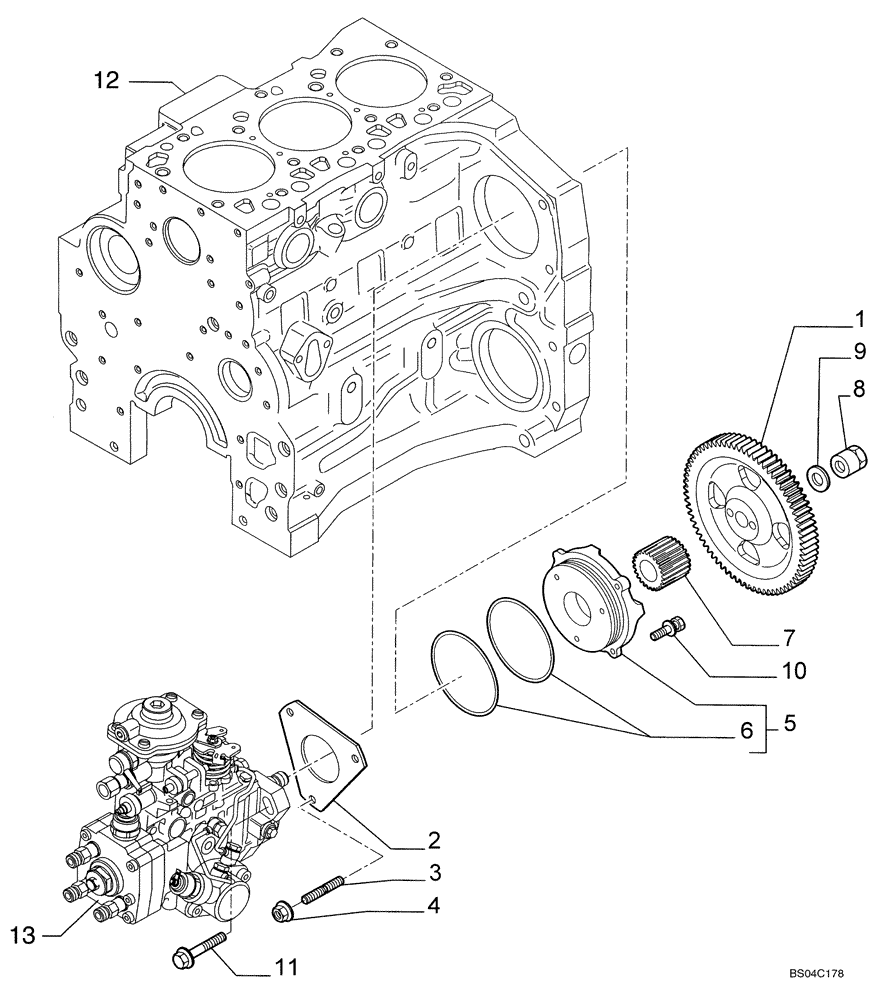

Запчасти Case IH 435 (03-05) - INJECTION PUMP - CONTROL (03) - FUEL SYSTEM

1

2854340

GEAR,52 T

1шт.

2

2831123

GASKET

1шт.

3

2852989

STUD

M8 x 1.25 x 30

2шт.

4

17044731

FLANGE NUT,Hex, M8 x 1.25, Cl 10

2шт.

5

4894729

SPACER

1шт.

6

4897111

O-RING,0.139" Thk x 4.719" ID

2шт.

7

4893227

HUB

1шт.

8

4893229

FLANGE NUT,M14

1шт.

9

4894736

SPRING WASHER,14.2mm ID x 24.1mm OD x 2.55mm Thk

1шт.

10

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

3шт.

11

2852610

SCREW,Shearing, M8 x 1.25 x 27mm

M8 x 1.25 x 27

1шт.

12

REF

INSTRUCTION

See Figure 02-09, 02-10, Cylinder Block

1шт.

13

REF

INSTRUCTION

See Figure 03-03, Fuel Injection Pump

1шт.
