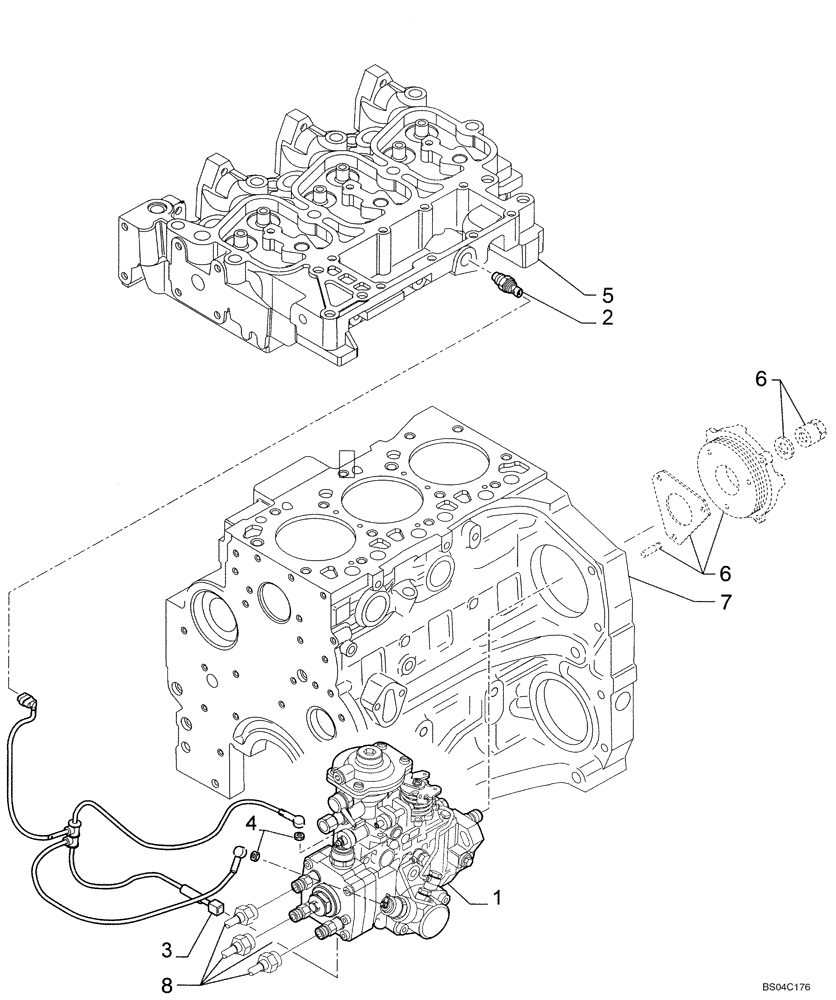

Запчасти Case IH 435 (03-03) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

2853041

FUEL INJECTION PUMP

1шт.

1

2853041R

REMAN-INJECTION PUMP

Pump Assy

1шт.

1

2853041C

CORE-INJECTION PUMP

Return number

1шт.

2

2852087

SENSOR

KSB Sensor, Water Temperature

1шт.

3

2852088

WIRE HARNESS

1шт.

4

2852089

NUT,M5

2шт.

5

REF

INSTRUCTION

See Figure 02-14, Cylinder Head

1шт.

6

REF

INSTRUCTION

See Figure 03-05, Injection Pump

1шт.

7

REF

INSTRUCTION

See Figure 02-09, 02-10, Cylinder Block

1шт.

8

REF

INSTRUCTION

See Figure 03-07, Fuel Injection System

1шт.
