(03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED

Запчасти Case IH 435 (03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM

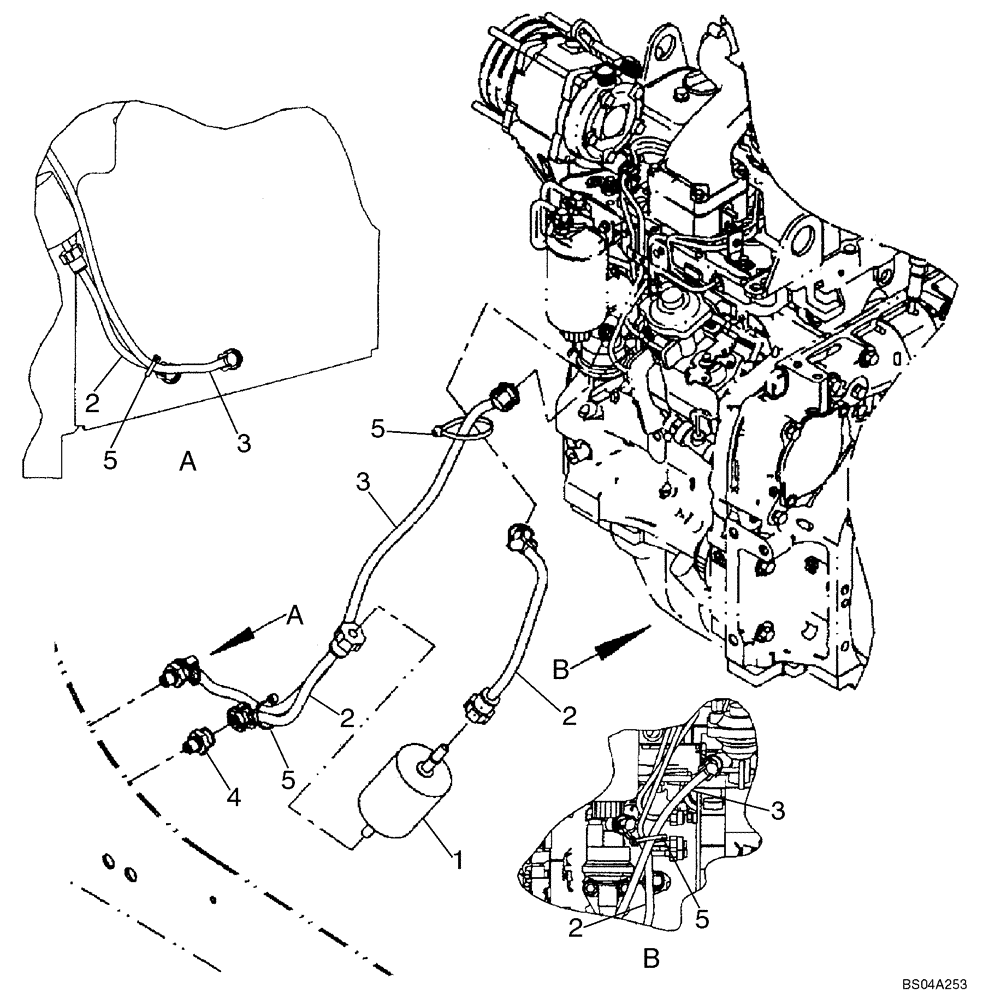

Схема запчастей Case IH 435 - (03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM
5
3
5
2
2
2
1
3
5
3
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87548612

FUEL FILTER

Inline; Replaces 87019604

1шт.

2

87018091

TUBE

Fuel Line

2шт.

3

87018092

FUEL TUBE,8mm ID x 675mm L

Fuel Line

1шт.

4

87431323

ADAPTER

2шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.
