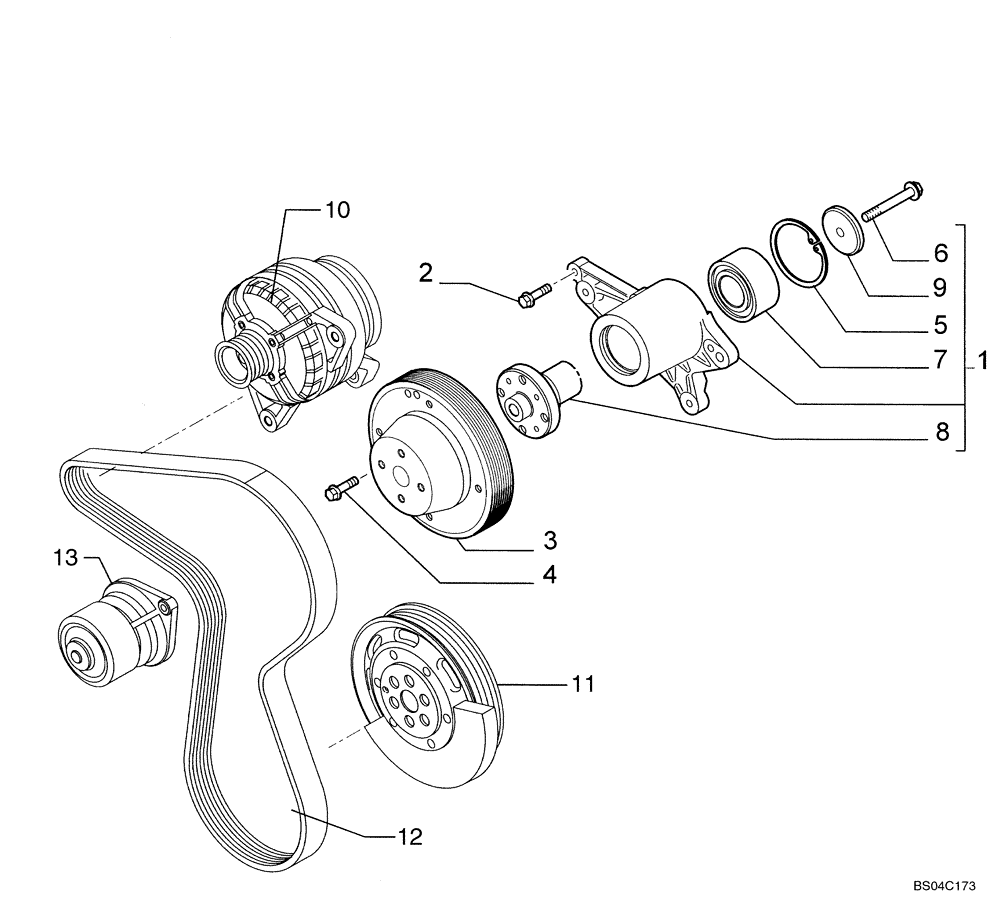

Запчасти Case IH 435 (02-35) - FAN DRIVE (02) - ENGINE

1

2853008

SUPPORT

1шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.

2

4895608

SCREW

1шт.

3

2853010

PULLEY,158mm OD

1шт.

4

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

4шт.

5

2852171

SNAP RING

1шт.

6

2852172

BOLT,Flng, M10 x 1.5 x 70mm

M10 x 1.5 x 70

1шт.

7

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

8

4892426

HUB

1шт.

9

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

10

REF

INSTRUCTION

See Figure 04-02, Alternator

1шт.

11

REF

INSTRUCTION

See Figure 02-23, Pulley, Crankshaft

1шт.

12

REF

INSTRUCTION

See Figure 02-34, VBelt

1шт.

13

REF

INSTRUCTION

See Figure 02-31, Water Pump

1шт.
