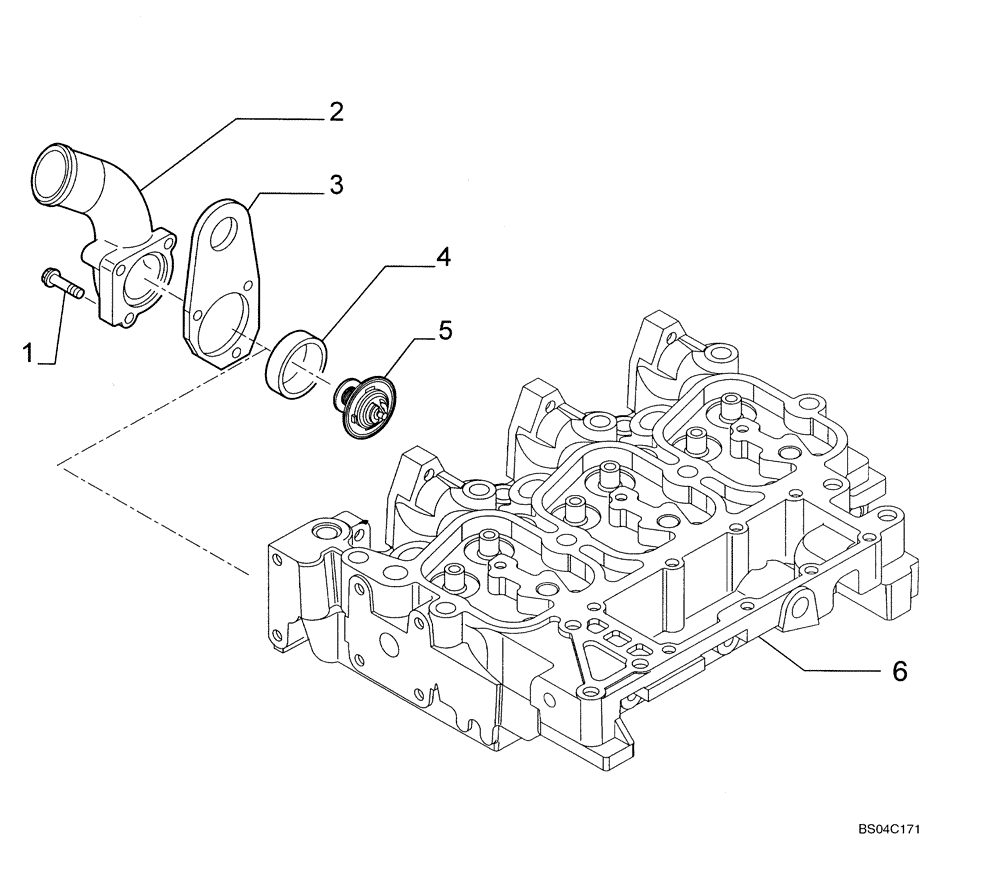

Запчасти Case IH 435 (02-33) - THERMOSTAT - ENGINE COOLING SYSTEM (02) - ENGINE

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

1шт.

1

4895295

BOLT,Flng, M8 x 1.25 x 70mm, Cl 10.9

2шт.

2

2852153

ELBOW

1шт.

3

2852242

BRACKET

1шт.

4

2852154

GASKET,50mm ID x 59.25mm OD x 16.23mm Thk

1шт.

5

2852159

THERMOSTAT

1шт.

6

REF

INSTRUCTION

See Figure 02-14, Cylinder Head

1шт.
