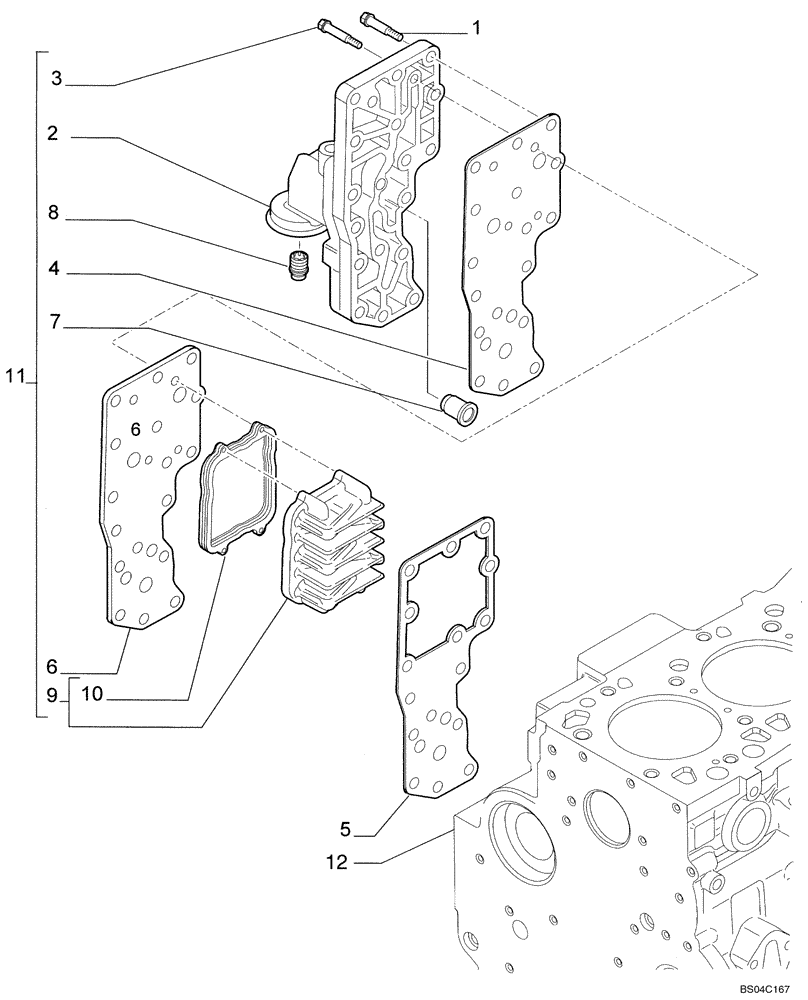

Запчасти Case IH 435 (02-30) - OIL FILTER AND COOLER (02) - ENGINE

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

13шт.

1

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

3шт.

2

2852999

SUPPORT

Oil Filter

1шт.

3

4899147

SCREW,Hex, M6 x 1 x 45mm

4шт.

4

2853000

GASKET

1шт.

5

2853005

GASKET

Oil Cooler Core

1шт.

6

2853001

SPACER

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

9

2853002

OIL COOLER

1шт.

10

2853004

GASKET

1шт.

11

2852998

INTERCOOLER

1шт.

12

REF

INSTRUCTION

See Figure 02-09, 02-10, Cylinder Block

1шт.
