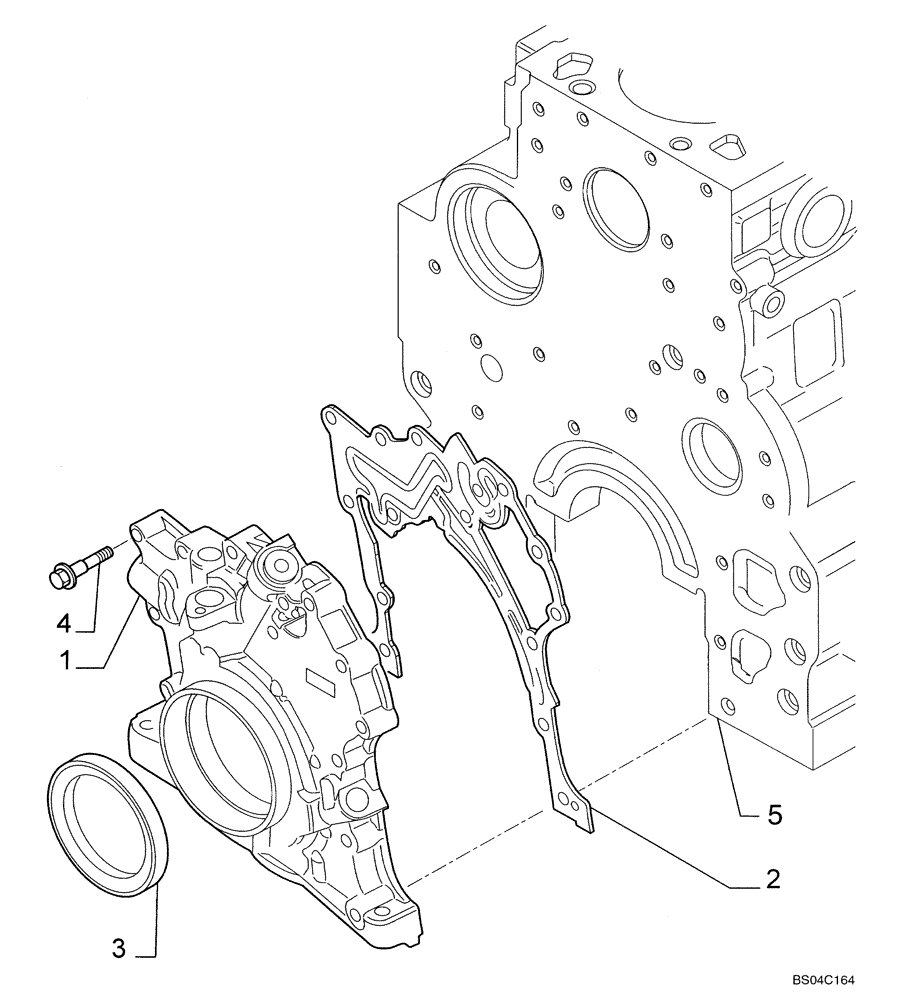

Запчасти Case IH 435 (02-27) - OIL PUMP - ENGINE (02) - ENGINE

1

2830912

ENGINE OIL PUMP

1шт.

2830913R

REMAN-ENG OIL PUMP

435 BSN N7M425032 (3/04-12/07) Reman For New P/N 2830912

1шт.

2830913C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

2830972

GASKET,2.3mm Thk

1шт.

3

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

4

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

11шт.

4

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.

4

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

5

REF

INSTRUCTION

See Figure 02-09, 02-10, Cylinder Block

1шт.
