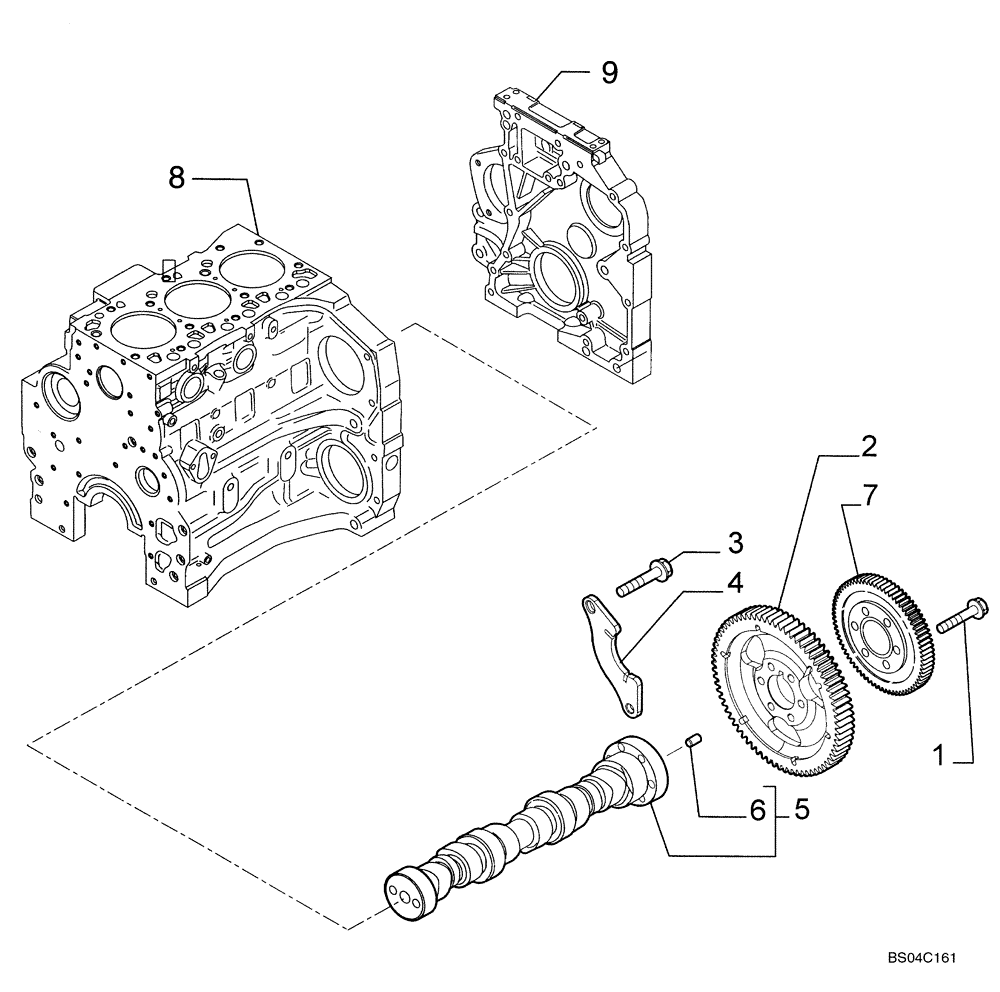

Запчасти Case IH 435 (02-24) - CAMSHAFT - TIMING CONTROL (02) - ENGINE

1

4897153

BOLT,Flng, M8 x 1.25 x 35mm

6шт.

2

4894775

GEAR

1шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

4

4897457

SUPPORT

1шт.

5

2852987

CAMSHAFT

1шт.

2852987R

435 BSN N7M425032 (3/04-12/07)

REMAN-CAMSHAFT

1шт.

2852987C

Return Number

CORE-CAMSHAFT

1шт.

2852987C

Return Number, for N.A. Only

CORE-CAMSHAFT

1шт.

6

4899080

DOWEL,M6 x 8 L

1шт.

7

4894776

GEAR

1шт.

8

REF

INSTRUCTION

See Figure 02-10, Cylinder Block

1шт.

9

REF

INSTRUCTION

See Figure 02-12, Cylinder Block Covers

1шт.
