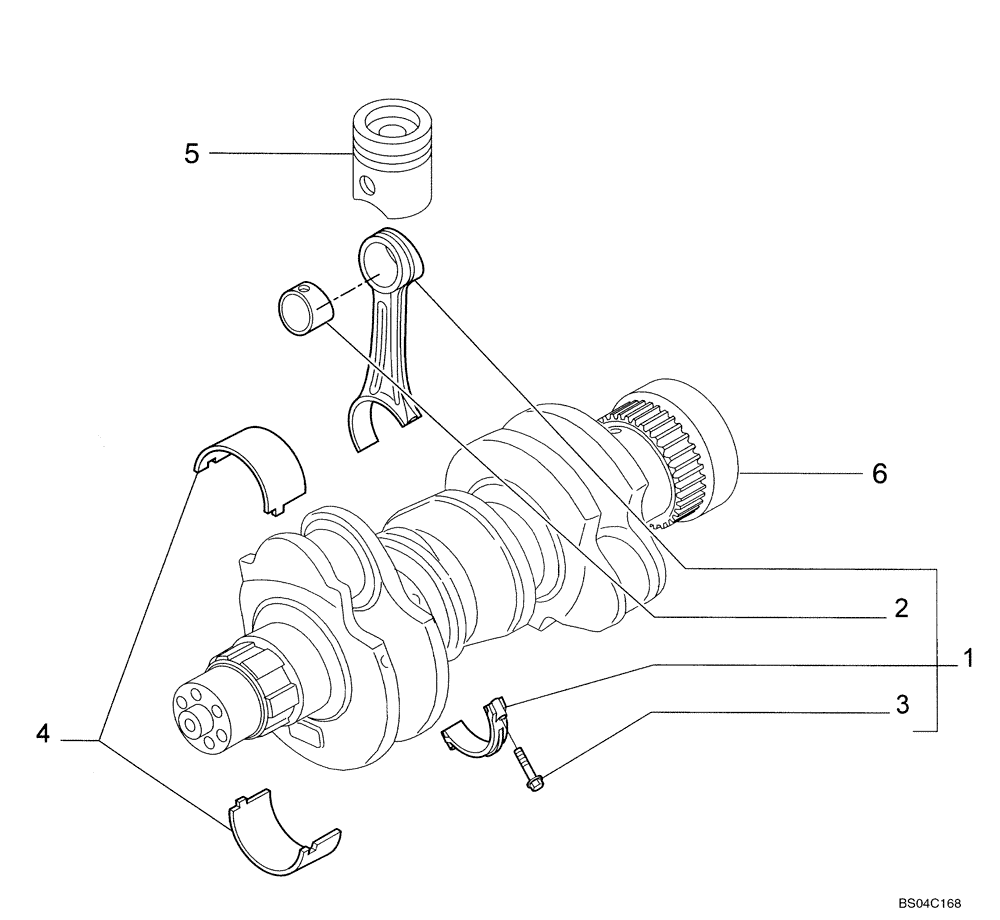

Запчасти Case IH 435 (02-20) - CONNECTING ROD (02) - ENGINE

1

2831298

CONNECTING ROD

Incl. Ref 2, 3

3шт.

2831298R

REMAN-CONNECTING ROD

435 BSN N7M425032 ( 3/04 - 12/07 )

3шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

8093882

BEARING SET

3шт.

4

8094960

BEARING SET,(-0.250)

3шт.

4

8094961

BEARING SET,(-0.500)

3шт.

5

REF

INSTRUCTION

See Figure 02-21, Piston

1шт.

6

REF

INSTRUCTION

See Figure 02-19, Crankshaft

1шт.
