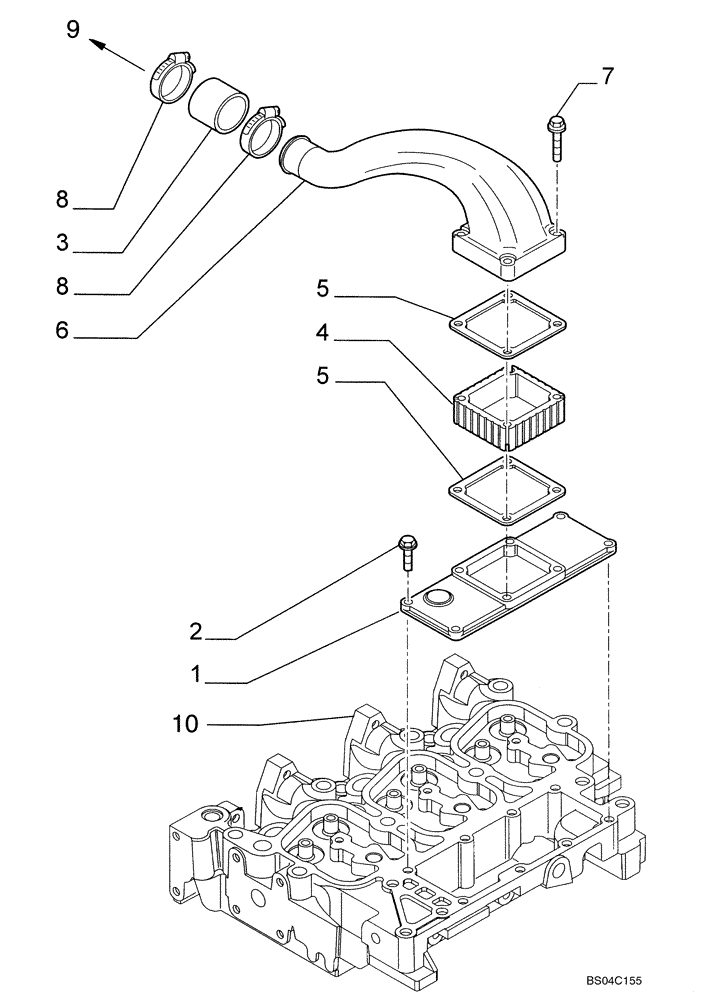

Запчасти Case IH 435 (02-17) - INTAKE MANIFOLD (02) - ENGINE

1

2853031

INLET MANIFOLD

Cover

1шт.

2

4899630

SCREW,Hex Flg, M8 x 1.25 x 25

8 x 1.25 x 25

4шт.

3

4899549

SLEEVE

1шт.

4

4895648

SPACER

For Grid Heater; See Figure 02-05

1шт.

5

4899921

GASKET,1.2mm Thk

2шт.

6

2853034

AIR INTAKE TUBE

Inlet

1шт.

7

4895609

BOLT,Flng, M8 x 1.25 x 100mm

4шт.

8

4899693

HOSE CLAMP

2шт.

9

REF

INSTRUCTION

See Figure 02-25, Turbocharger

1шт.

10

REF

INSTRUCTION

See Figure 02-14, Cylinder Head

1шт.
