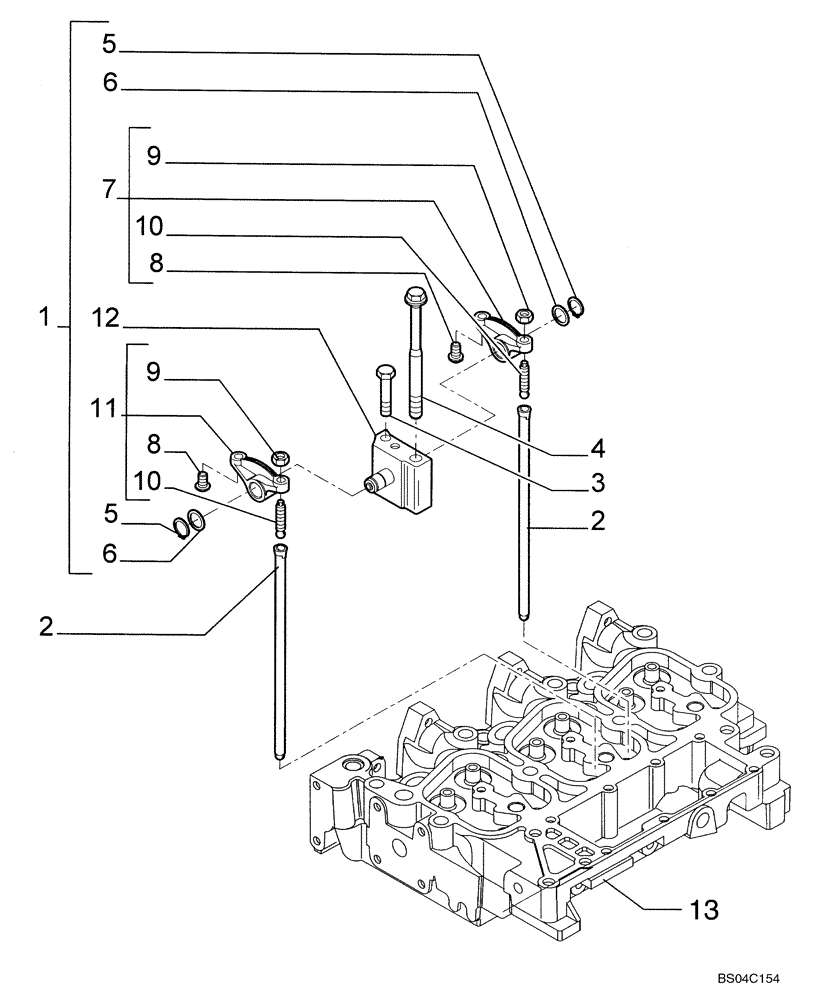

Запчасти Case IH 435 (02-16) - CYLINDER HEAD - VALVE MECHANISM (02) - ENGINE

1

4895195

ROCKER

3шт.

2

4895361

PUSH ROD

6шт.

3

2852866

BOLT,Flng, M8 x 1.25 x 75mm, Cl 8.8

M8 x 1.25 x 60

3шт.

4

4892860

BOLT,Flng, M12 x 1.75 x 183mm

3шт.

5

4895363

SNAP RING

2шт.

6

4895364

WASHER

2шт.

7

4895196

ROCKER ARM,Exhaust

1шт.

8

4895365

INSERT

2шт.

9

4895198

NUT,3/8"-24, Heavy

2шт.

10

4895199

ADJUSTMENT SCREW,3/8" - 24 x 25.85mm

2шт.

11

4895200

ROCKER ARM,Intake

1шт.

12

4895204

SHAFT

1шт.

13

REF

INSTRUCTION

See Figure 02-14, Cylinder Head

1шт.
