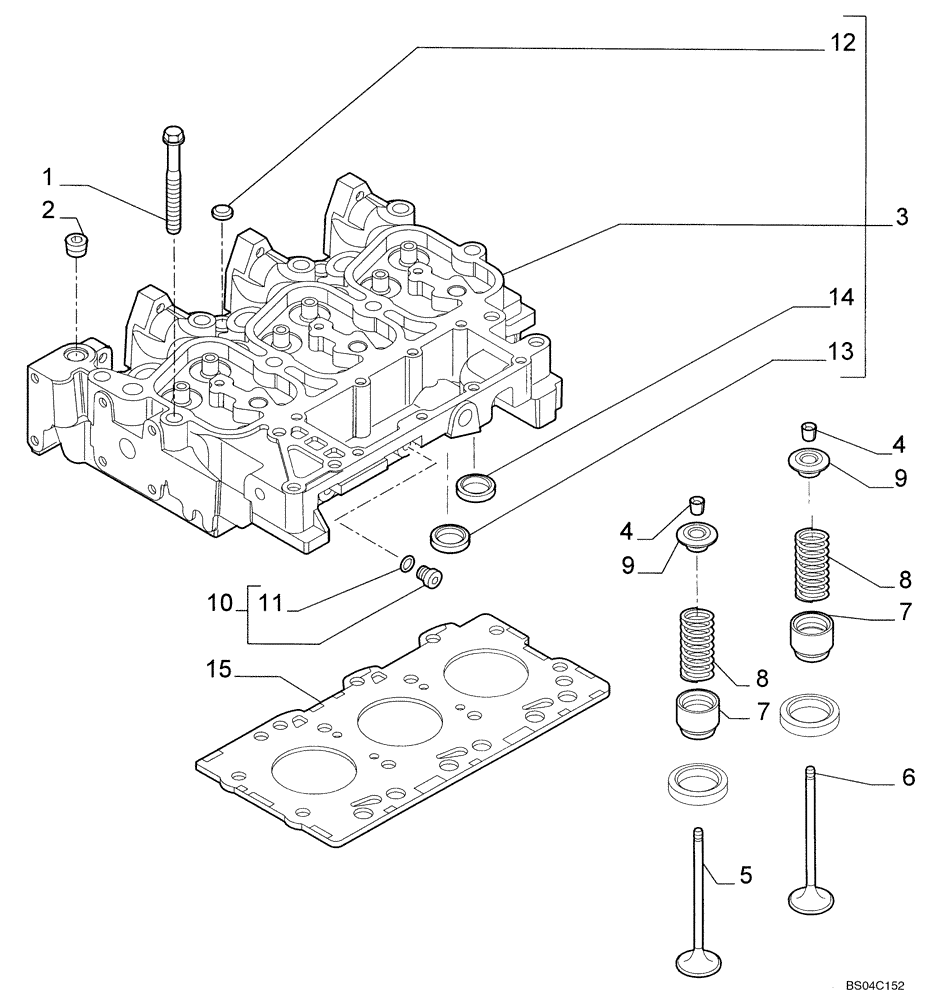

Запчасти Case IH 435 (02-14) - CYLINDER HEAD (02) - ENGINE

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

3шт.

1

4892859

BOLT,Flng, M12 x 1.75 x 143mm

8шт.

2

4895078

PIPE PLUG,1/2"-14

4шт.

3

4895808

CYLINDER HEAD

1шт.

87536216

- ASSY Include Ref. 3,4,5,6,7,8,9,10

CYLINDER HEAD

1шт.

87536216R

REMAN-CYLINDER HEAD

1шт.

87536216C

Return Number

CORE-CYLINDER HEAD

1шт.

4

4895183

COLLET

12шт.

5

4895188

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

3шт.

6

4895187

STD INLET VALVE

STD ENGINE INLET VALVE

3шт.

7

4895347

SEAL

6шт.

8

4895215

VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL

6шт.

9

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

6шт.

10

4899009

PLUG,M10 x1

1шт.

11

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

12

4895179

EXPANSION PLUG,M20.93

3шт.

13

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

3шт.

14

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

3шт.

15

2852979

CYLINDER HEAD GASKET

SP=1.25

1шт.

15

2852980

CYLINDER HEAD GASKET

SP=1.15

1шт.

4895246

PLUG

Not Illustrated

2шт.
