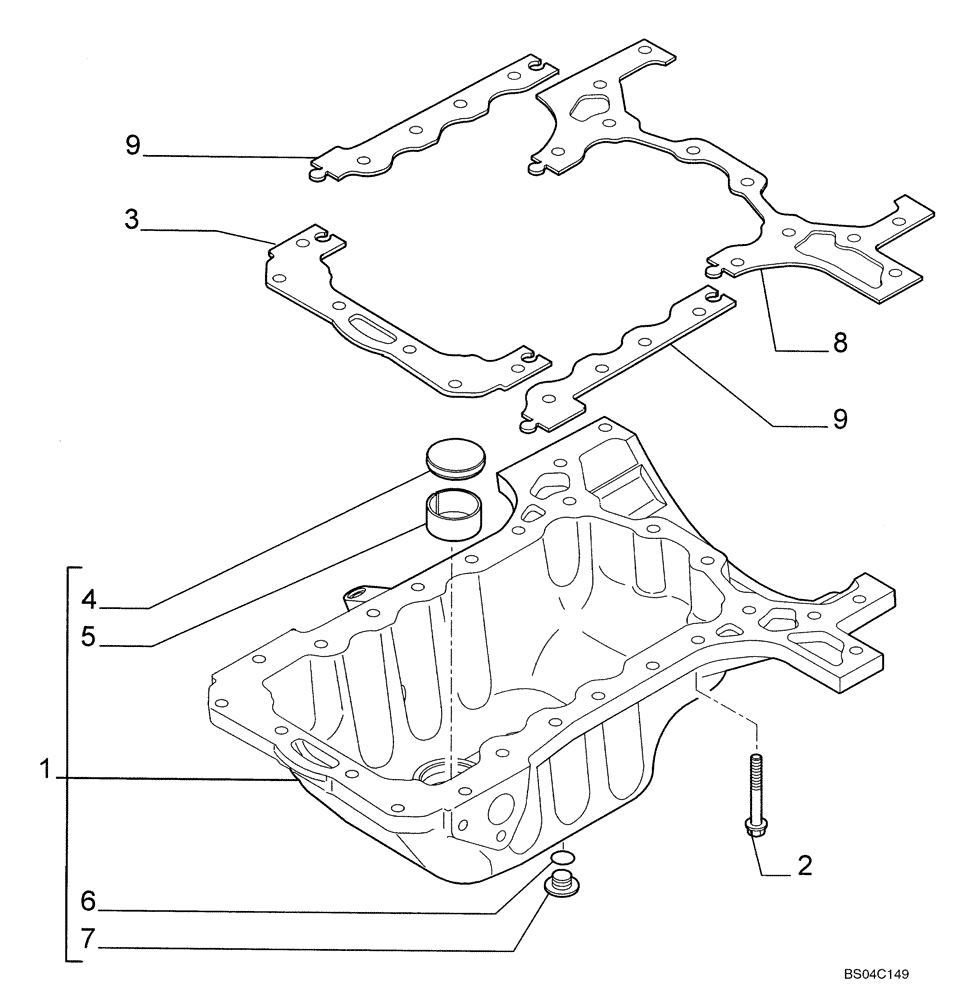

Запчасти Case IH 435 (02-11) - OIL PUMP, PAN (02) - ENGINE

1

2852973

ENGINE OIL PAN

1шт.

2

4899077

SCREW

2шт.

2

4892915

FLANGE BOLT,Hex, M10 x 1.5 x 40mm

21шт.

2

4897905

SCREW

2шт.

3

2852977

OIL PAN GASKET SET

Front

1шт.

4

4895936

PLUG

1шт.

5

4895935

FILTER SCREEN

1шт.

6

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

7

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

8

2852976

OIL PAN GASKET SET

Rear

1шт.

9

2852975

OIL PAN GASKET SET

2шт.

8094562

OIL PAN GASKET SET

Incl. 3, 8, 9

1шт.
