Запчасти Case IH 435 (09-29D) - DOOR, FRONT, METAL FRAME - WINDSHIELD; USES WIPER MOTOR 87748779 (09) - CHASSIS

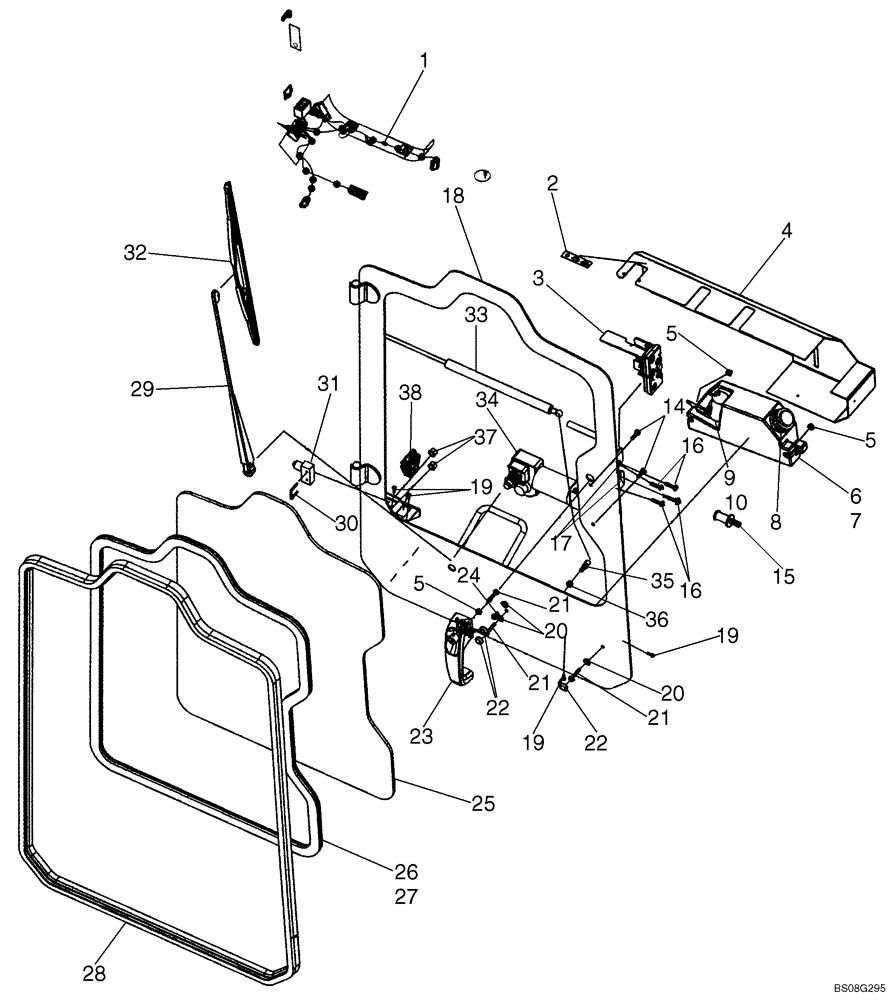

Схема запчастей Case IH 435 - (09-29D) - DOOR, FRONT, METAL FRAME - WINDSHIELD; USES WIPER MOTOR 87748779 (09) - CHASSIS
6
25
23
4
36
21
2
37
20
21
27
17
33
34
5
38
18
35
22
16
29
9
26
15
28
8
21
19
31
7
24
30
19
32
14
19
5
5
22
1
16
10
3

Артикул

Название

Примечание

Количество

1

87554261

HARNESS

Wiring Harness, HLXT Door Harness

1шт.

2

87461244

DECAL

Decal, Windshield Wiper Switch

1шт.

3

87458047

LATCH

Door Latch

1шт.

4

87529401

DOOR COVER

1шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

6

87529400

BOTTLE

Washer Bottle Assembly; Incl 7 - 13

1шт.

7

87458049

BOTTLE

Washer Bottle

1шт.

8

257884A1

CAP

Washer Bottle Cap

1шт.

9

87458050

PUMP

Washer Pump

1шт.

10

87458051

GROMMET

Washer Pump Grommet

1шт.

11

87535452

HOSE WASHER

Washer Hose, 3/16 in. ID X 2 in. Length; Not Illustrated

1шт.

12

87535451

FOAM

Foam, 1/8 in. X 1 in. Wide X 4 in. Length; Not Illustrated

1шт.

13

87535450

FITTING

Barb Fitting; Not Illustrated

1шт.

14

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

2шт.

15

87462415

STOP

Striker Bolt

1шт.

16

86511831

SCREW,Phillips Drive, Pan HD, M6 x 25mm

4шт.

17

87461187

CAP

Square Tubing End Cap

2шт.

18

87717044

DOOR

Cab Door

1шт.

19

87462369

SCREW,Pan, #8 - 32 x 1/2"

4шт.

20

87035254

RETAINER

Retainer Screw Cover

3шт.

21

86511832

SCREW,Phillips Drive, Pan HD, M6 x 30mm, Cl 4.8

3шт.

22

87035253

COVER

Screw Cover

3шт.

23

87458046

LOCKING HANDLE

Door Handle, Keyed Same As Ignition Key

1шт.

24

191879

SCREW,Cross Pan Hd, 1/4" - 28 x 1/2"

1шт.

25

87529399

GLASS

Door Glass

1шт.

26

87459549

RUBBER STRIP,2489.2mm L

Zip Locking Rubber

1шт.

27

87459548

STRIP

Zip Locking Rubber Strip

1шт.

28

87459550

DOOR SEAL,3327.4mm L

Bulb Seal

1шт.

29

87748780

WIPER ARM

Wiper Arm, 20 1/2 in.

1шт.

30

H435814

U-BOLT

1шт.

31

392269A2

SWITCH

Door Switch

1шт.

32

87748799

WIPER BLADE

Wiper Blade, 18 in.

1шт.

33

87529351

SHOCK ABSORBER

Gas Shock, 19 5/8 in. Extended Length X 7 1/2 in. Stroke

1шт.

34

87748779

WIPER MOTOR

1шт.

35

189609A1

BALL STUD,M8 x 1.25

Ball Stud

1шт.

36

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

37

280859

NUT,Keps, #6-32

2шт.

38

87458055

SWITCH

Rotary Switch

1шт.

Выбрано товаров: 38
